Middle Size WIND-BLDC-IP Motor Stator Insulation Paper Inserting Machine for Versatile

Large Image : Middle Size WIND-BLDC-IP Motor Stator Insulation Paper Inserting Machine for Versatile

Product Details:

Contact Now

Middle Size WIND-BLDC-IP Motor Stator Insulation Paper Inserting Machine for Versatile

Description

Model NO.:	WIND-BLDC-IP	Dimension:	640X1140X1545mm
After-Sales Service:	Engineers Avaiable To Service Overseas	Warranty:	12 Months
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

BLDC Motor Stator Insulation Paper Inserting Machine
BLDC Motor Stator Insulaltion Paper Inserting Machine

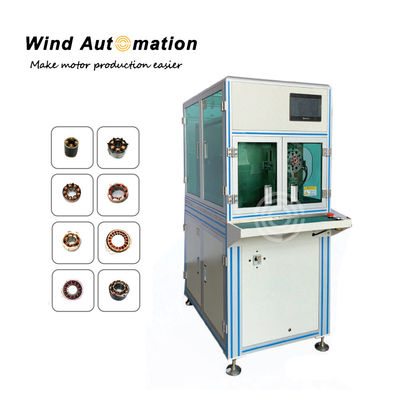

This BLDC motor stator paper inserting machine is used to insert paper into stator slot. Once stator is loaded, all the process will be done by machine automatically, including paper cutting, paper forming, paper inserting.

(1)Specification

Stator OD	20~80mm
Stack length	20~70mm
Slot number	8~36
Paper thickness	0.15~0.45mm
Paper width	10~35mm
Productivity	0.3~1s/slot
Power	1KW
Air source	0.4~0.7 MPa
Power supply	AC 220±10, 50/60HZ
Dimension	640x1140x1545mm
Weight	450KG

(2) Application

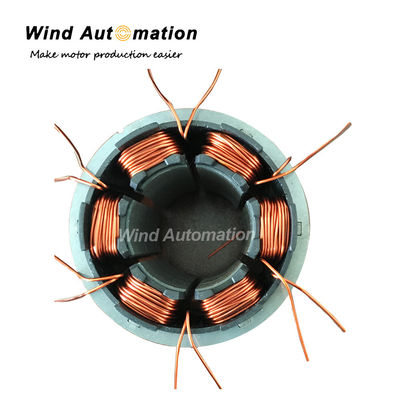

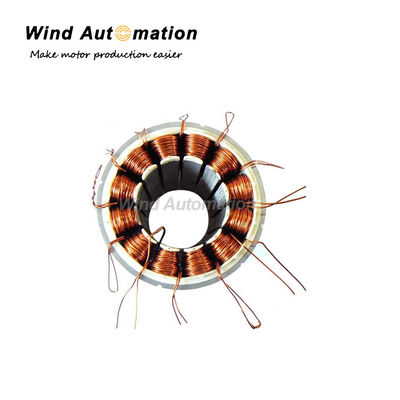

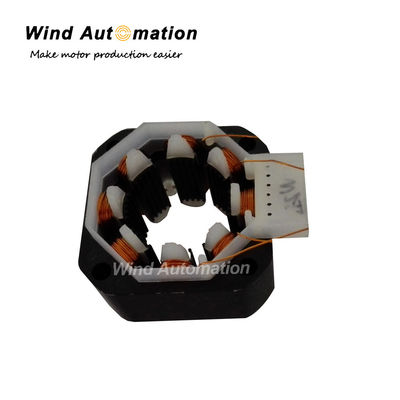

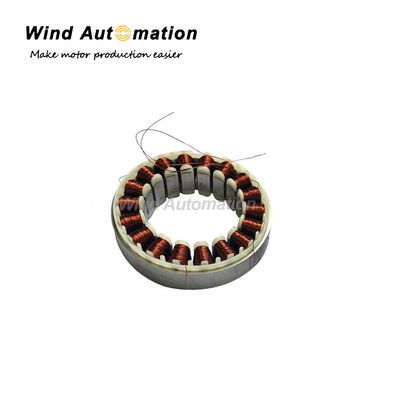

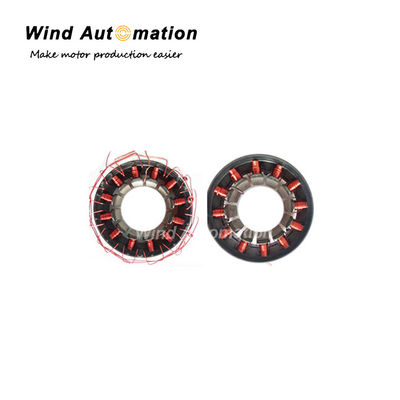

It is suitable for brushless motors, electric tool motors, refrigeration compression motors, home appliance motors.

(3)Features
Adopts AirTAC pneumatic componets.
All the movement coordinated and reliable
Fast paper insertion, accurate positioning
Fully automatic paper inserting cycle after loading of the stator
Paper length can be adjusted
Can be connected with an automatic production line
Precise servo drive control of the insulation paper feeding

BLDC Motor Stator Insulaltion Paper Inserting Machine
