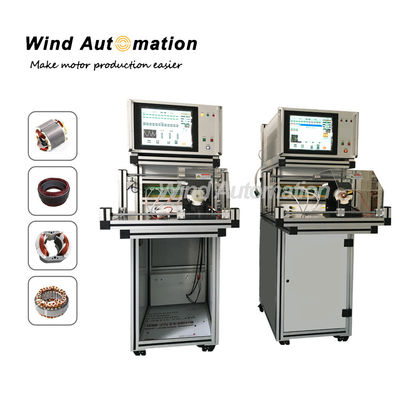

Product Details:
|
| Model NO.: | WIND-MTS-30 | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |
| Test Items | Test Description | Accuracy |
| Isolation resistance | DC 500V/1000V | 0.1-500MΩ ≤±2.5% Full scale |
| Hipot | AC 100-1000V | 0-20mA ≤±2.5% Full scale |
| Speed | 0~50000rpm | ≤±1% |
| Voltage | DC 0~200V | ≤±1% Full scale |
| Current | 0-5A/0-10A/0-20A | ≤±1% Full scale |
| Power | 0~3000W | ≤±1.5% Full scale |
| Hall waveform duty cycle | 0~100% | ≤±0.1% |
| Hall phase difference | 0~360° | ≤±1% |
| Electrical conduction angle | 0~100% | ≤±1% |
| Hall level | ±10V | ≤±1% |
| Back EMF detection | Rotation range:200~3K rpm Voltage range:20~200V | ≤±1% |
| Turn direction | According to magnetic field | CW/CCW |
| Noise | Frequency Range: 0~12000HZ Test Results: 30~120dB | ≤±1.5dB |
| Vibration | Frequency Range: 0~12000HZ Test Results:0.1~100m/s2 | ≤±5% |
| QR/Bar code | Applicable | |
