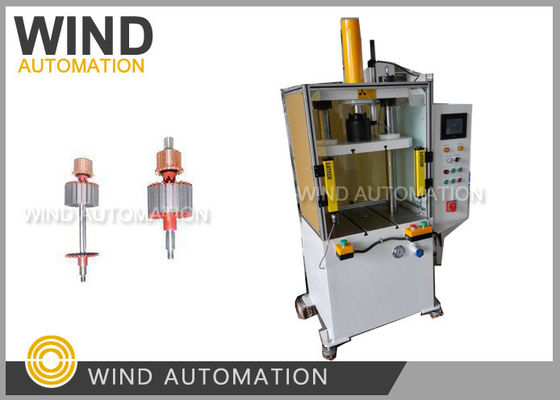

Customizable WIND-Y32 Shaft Inserter for Starter Motor Armature to Meet Your Requirements

Large Image : Customizable WIND-Y32 Shaft Inserter for Starter Motor Armature to Meet Your Requirements

Product Details:

Contact Now

Customizable WIND-Y32 Shaft Inserter for Starter Motor Armature to Meet Your Requirements

Description

Model NO.:	WIND-Y32	Customized Service:	Provided
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year
Package Size:	1000.00cm * 2000.00cm * 1600.00cm	Package Gross Weight:	780.000kg

Automatic Shaft Inserting Machine Shaft Inserter For Starter Motor Armature

(1) Competitive Advantages
1. The motor manufacturers have 100% satisfactions good feedback
2. Easy to operate and set on screen
3. Safety curtain ensure the safety
4. Pressure sensor and magnetic scale make sure timely observation and detection

(2) Parameter

Hydraulic press application	Features
Bearing press	The pressure sensor need capable to measure force
Shaft inserting machine	Press machine have the capability to define lower and uppler press on force limits to detect low or upper force.
Commutator placement	Commutator press fixture make sure the location of commutator and slot in a relative fixed place for armature winding process

(3) Application
Hydraulic machine for placing the stack to the and pressing the stack to get better perpendicularity and parallelism on the stack.

Press capacity will be min 15 ton.
Press should have position controller and load controller.
Minimum stroke will be 250mm
Distance between the table and shaft end is 450mm
Automatic Shaft Inserting Machine Shaft Inserter for Starter Motor Armature
