Starter Pole Coil Winding Copper Strip Winding Machine

Large Image : Starter Pole Coil Winding Copper Strip Winding Machine

Product Details:

Contact Now

Starter Pole Coil Winding Copper Strip Winding Machine

Description

Model NO.:	WIND-PCW-F2	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

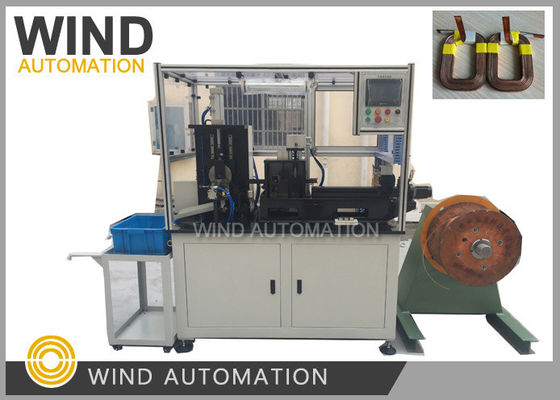

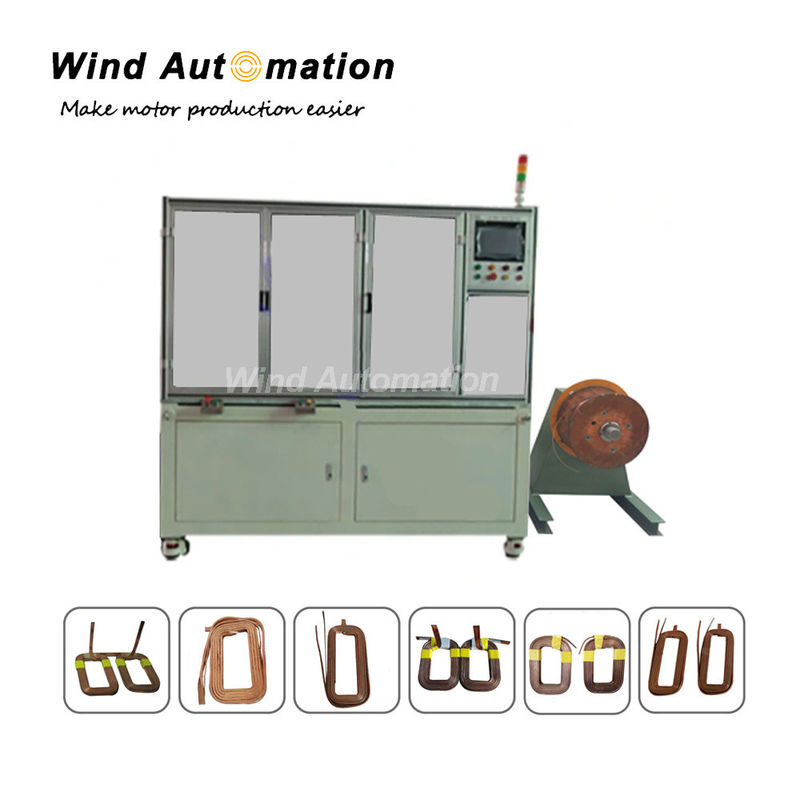

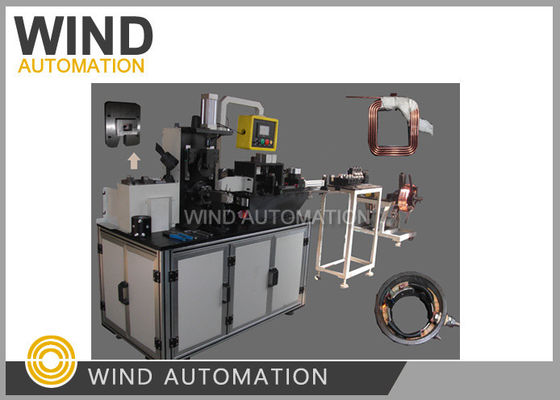

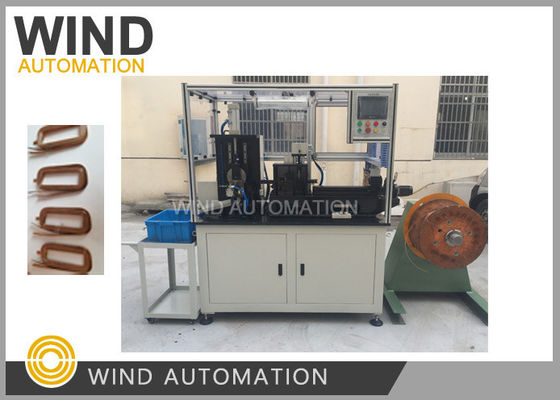

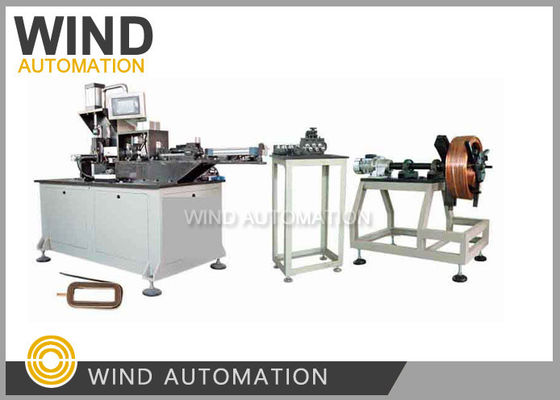

Starter Pole Coil Winding Copper Strip Winding Machine

The winding machine can automatically wind the field coil with below process continuously,

Automatic wire feeding→ wire straightener → bend starting terminal→ wire feeding I, →bending→ wire feeding II→ press wire to tooling→ forming→ paper feeding and twisting winding→Wire cutting→ paper cutting→ twisting forming→unloading,

(1)Specifications

Productivity	12s/pc
Power Supply	AC 380V
Power	1.5KW
Weight	600KG
Dimension	1500x800x1800mm

(2) Application

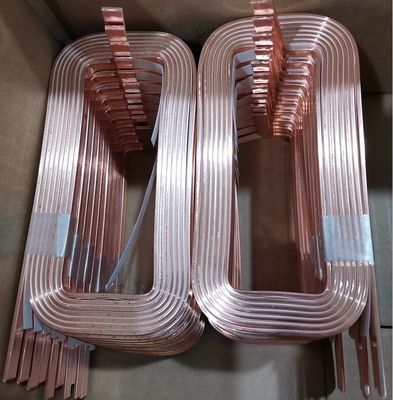

Suitable for various kinds of starter motor with rectangular wire coil.

(3) Features
Short re-adjusting time
PLC controlled working operations
Completely automated winding process of the magnetic field coil
Auto winding, straightening, bending and twisting
This machine can be customized accordingly
Self-diagnostic troubleshooting system
No skilled operator required

Machine working process

The machine can automatically wind the field coil with below process continuously,
Automatic wire feeding→ wire straightener → bend starting terminal→ bending→ press wire to tooling→ forming→ paper feeding and twisting winding→Wire cutting→ paper cutting→ twisting forming→unloading,
Output : around 15s' to 30s' per piece, around 2000pcs per shift/8hours

Machine Construction

Wire straighten mechanism,

Comprised of X,Y direction two set Guide wheel straightening
And cylinder, the cylinder pull wire to straighten it.

Wire feeding mechanism

Servo motor Delta drive the wire feeding module to feed the wire,
the wire feeding length can be setted on screen, and wire slotting limit can make sure
the wire trace is right

Starting terminal bending mechanism

Use cylinder to drive pulley to bend starting terminal,
The bending direction can be left or right

Wire bending mechanism

Comprised of press wire device and bending device,
bending direction can be left or right

Cutting mechanism

With special Cutter dedicated for field coil

Coil winding and unloading mechanism

Coil winding mechanism comprise of press wire device driven by cylinder,
Rotation device driven by Delta servo motor with reducer's transmission part,
Tooling, tooling clamp device, ejection device.

The wire feeding mechanism feed the bended wire to fixed position of tooling,
press wire device begin to press the wire, rotation device rotate,
when rotate to setted position the paper will feeded ,
and continue to rotate to setted position, and cut paper, rotate to wind the coil.
The tooling clamping device loose, finshed coil come out and repeated from beginning.

Paper guide device

Comprised of paper rack, paper feeding motor and paper press device

The machine frame is Aluminum with organic glass

Simens PLC

   Delta servo motor
   Weinveiw touch screen
   Airtac Cylinder

Weight: about 650Kg
Machine dimension: 1,500mm x 900 mm x 1700mm³
