Product Details:
|
| Model NO.: | WIND-PCW-F1 | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

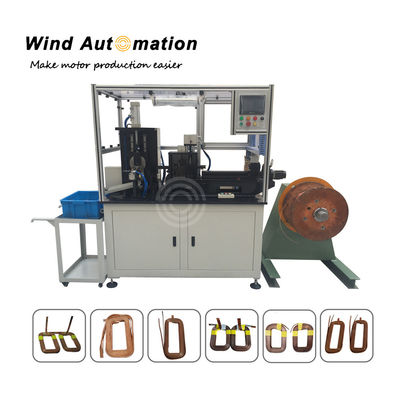

The machine can automatically wind the field coil with below process continuously,
Automatic wire feeding→ wire straightener → bend starting terminal→ wire feeding I, →bending→ wire feeding II→ press wire to tooling→ forming→ paper feeding and twisting winding→Wire cutting→ paper cutting→ twisting forming→unloading,
| Productivity | 12s/pc |
| Power Supply | AC 380V |
| Power | 1.5KW |
| Weight | 600KG |
| Dimension | 1500x800x1800mm |
