Middle Size Armature Slot Insulation BSCSOV Shapes Inserter with 100 Sets/Year Output

Large Image : Middle Size Armature Slot Insulation BSCSOV Shapes Inserter with 100 Sets/Year Output

Product Details:

Contact Now

Middle Size Armature Slot Insulation BSCSOV Shapes Inserter with 100 Sets/Year Output

Description

Model NO.:	WIND-SZ-1	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Starter Armature Slot Cell Inserter Armature Slot Insulaltion B Shape S Shape C Shape O Shape V Shape

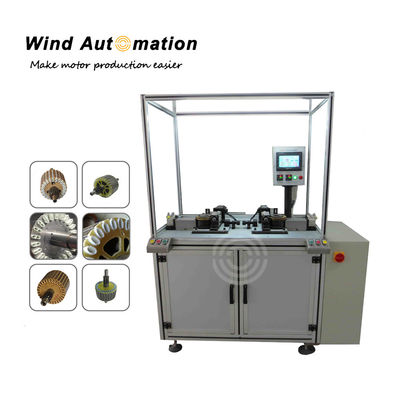

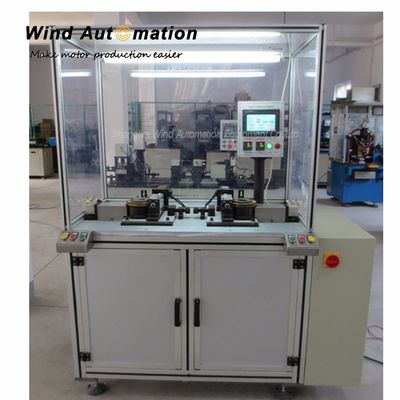

Machine is for automobile starter motor armature slot insulation, it automatic form and shape the s shape cell and insert to starter armature, We also have machines for different shape such as B type S type C type O type V shaped and continuous armature slot insulation forming and insertion, double station improve the production efficiency

(1)Features

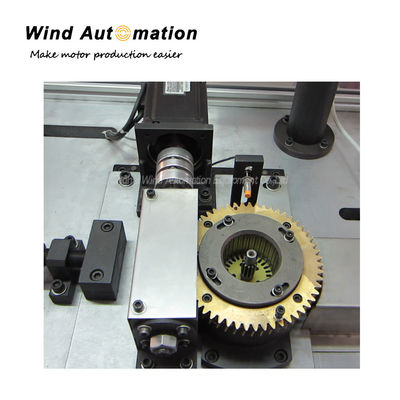

Paper automatic heating, shaping, cutting off and insertion, automatic indexing

(2) Specification
Insulation material thickness: 0.18~0.2mm
Armature stack height: Max 100mm
Power Supply: 220V± 10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Heating temperature: 70~100
Weight: Around 700KGS
Dimension: 1200*650*1500mm

(3)Application

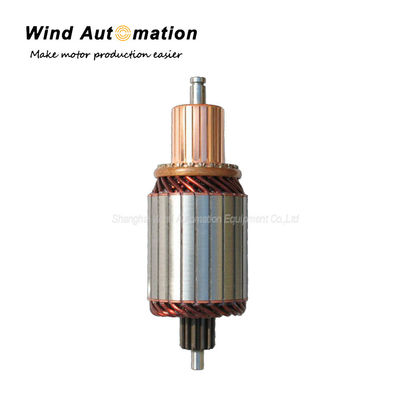

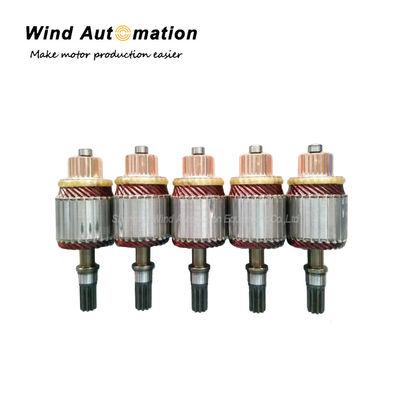

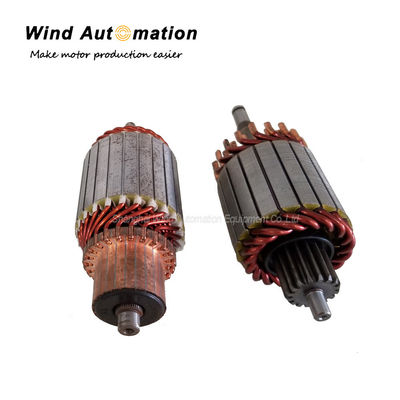

This insulation paper inserting machine is suitable for starter rotors, automotive and aircraft motor rotors to do slot paper insertion.

(4)Information needed

Below information are required when you send the inquiry
