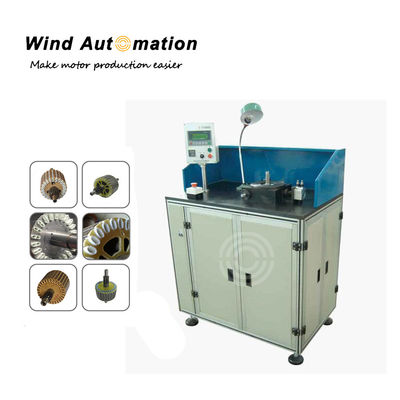

Middle Size S Shape B Shape Rotor Slot Paper Insertion Machine 100 Sets/Year

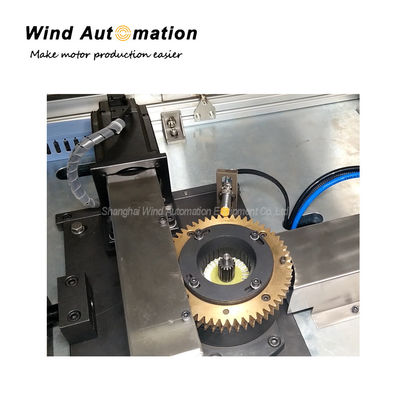

This rotor paper insertion machine is capable of producing both B-shape or S-shape slot insulation. Except for manual loading and unloading, all the other process will be done by machine automatically, including paper feeding, heating, edge forming, cutting, and paper inserting.


(2) Application

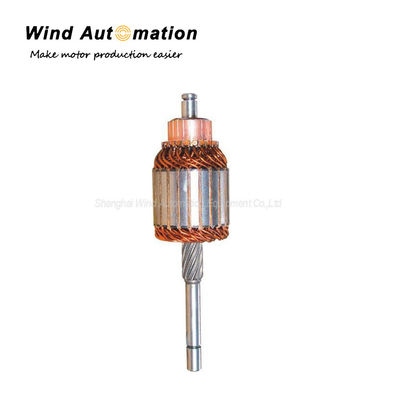

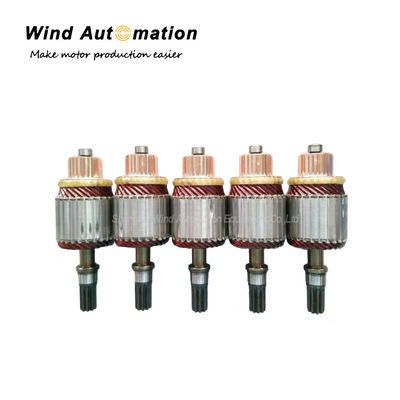

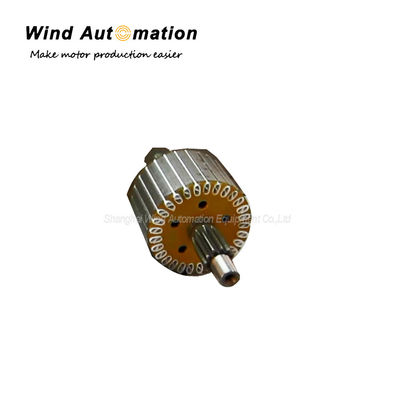

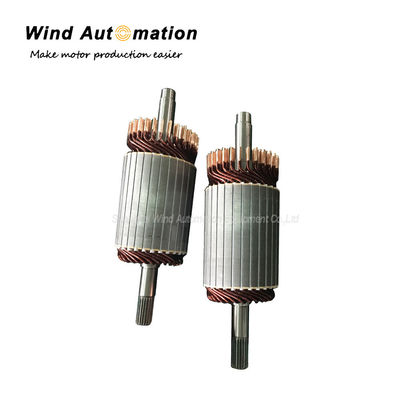

This insulation paper inserting machine is suitable for starter rotors, automotive and aircraft motor rotors to do slot paper insertion.

(3)  Features
This paper inserting machine can be customized accordingly.
Capable of producing both B-shape or S-shape slot insulation
High quality level of the paper inserting process
Manual loading and unloading
High repeatability of the insulation's shape and length
Parameter of different models can be edited, modified and displayed.
Quick and easy readjustment for other types of armatures
After paper inserted, no deformation of rotor or lamination.
Easy for operation, No skilled operator required
