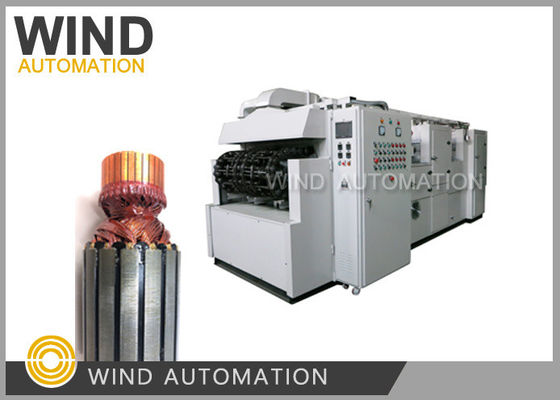

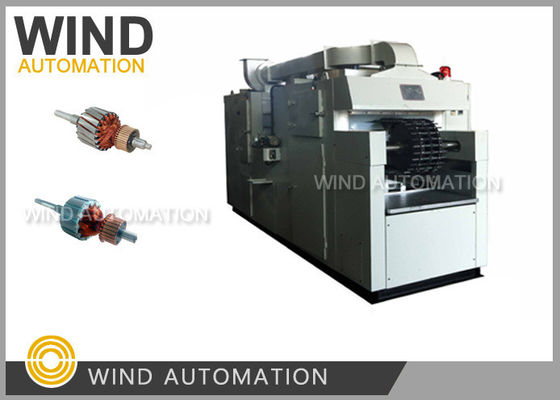

Starting Motor Armature Varnish Impregnation Dripping Machine

Large Image : Starting Motor Armature Varnish Impregnation Dripping Machine

Product Details:

Contact Now

Starting Motor Armature Varnish Impregnation Dripping Machine

Description

Model NO.:	WIND-ZDG	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Starting Motor Armature Varnish Impregnation Dripping Machine

This machine is designed for armature insulation treatment. The working cycle including pre-heating, air cooling, varnish trickling, distributing even and post curing is fully done by machine. High automation and big oven guarantees the quality for mass production.

(1) Specification

Working position	124×2
Position pitch	76 mm
Heating time	≤45min
Tunnel working temperature	0~160ºC
Pitch time	0~10 adjustable
Power	28 KW
Dimension	4900×1600×2100 mm
Weight	3.5 T

(2) Application

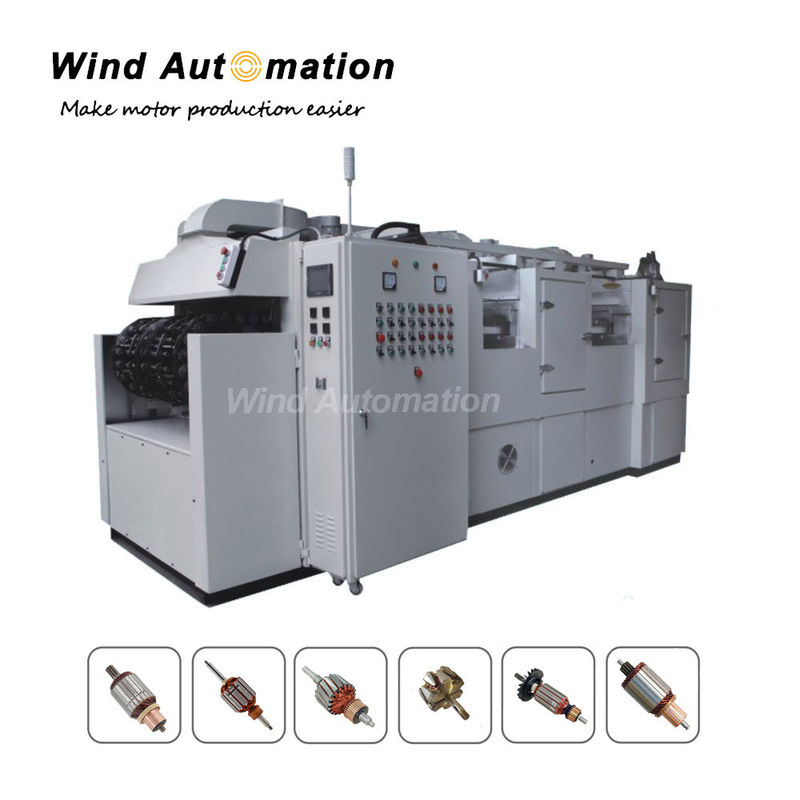

This machine has a wide range of application, suitable for various kinds of rotors, such as starter motor, alternator motor, home appliance motors, industrial fans, pump motors, new energy vehicles motors, vacuum cleaner motors, power tool motors, series excited motor, treadmill motor, vacuum cleaner motor.

(3) Features
Mass production
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
High quality level of the varnishing process
Heating time, pitch time and temperature can be set.
Can be customized accordingly

(4)Competitive advantages
Fully automatic, operator only need to load and unload armature

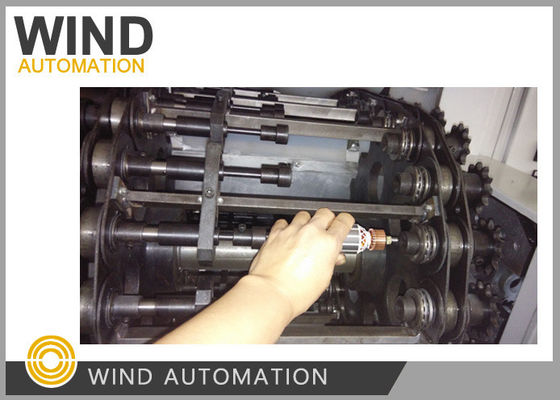

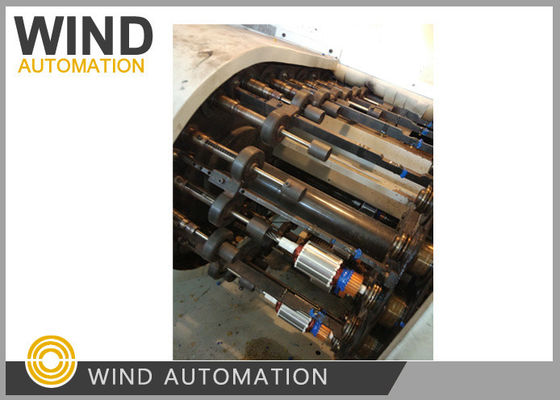

Rolling and dipping device is at top layer of machine,easy to adjust and maintain
Environment friendly, centrifigution exhausting blower suck the exhausting gas.
