WIND-AWF-R Round Wire Forming Machine Hairpin Winding Machine

Large Image : WIND-AWF-R Round Wire Forming Machine Hairpin Winding Machine

Product Details:

Contact Now

WIND-AWF-R Round Wire Forming Machine Hairpin Winding Machine

Description

Model NO.:	WIND-AWF-R	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	50 Sets/Year

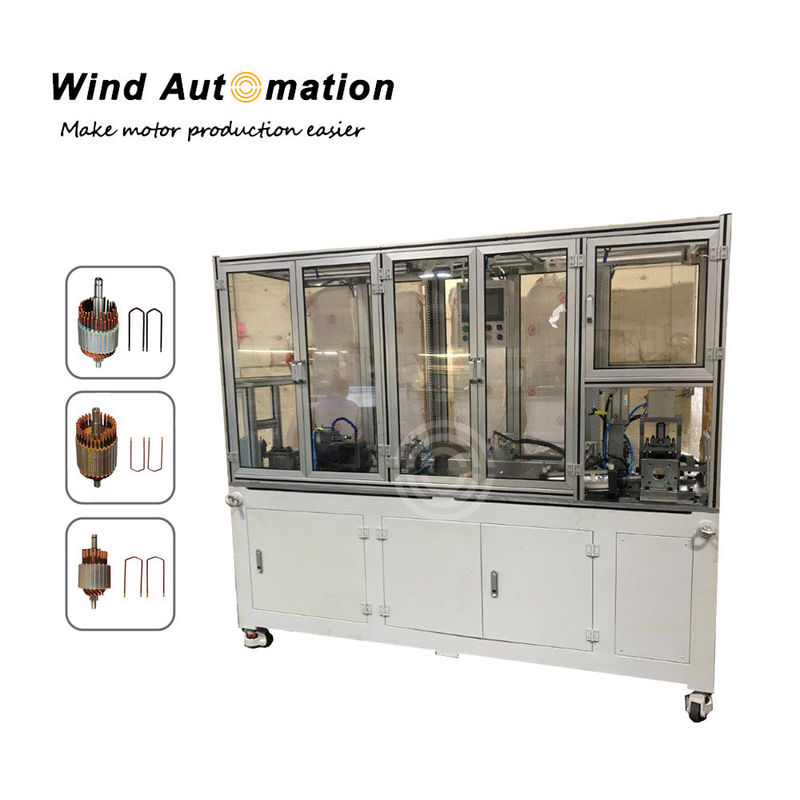

Round Wire Forming Machine Hairpin Winding Machine

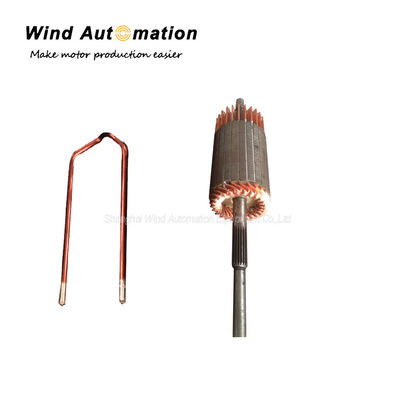

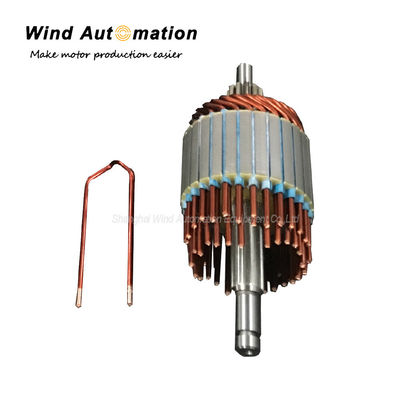

This hairpin forming machine is widely used to produce hairpin coils for starter motors. This type is for round wire to do hairpin winding. The cycle time is about 3s per piece.

(1) Specification
Cycle time: Around 3s/pc
Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: Around 700KGS
Dimension: 1700mm*600mm*1650mm

(2) Application

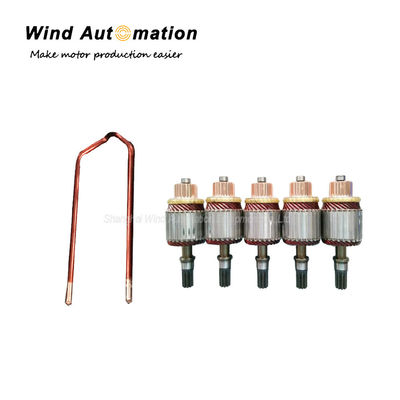

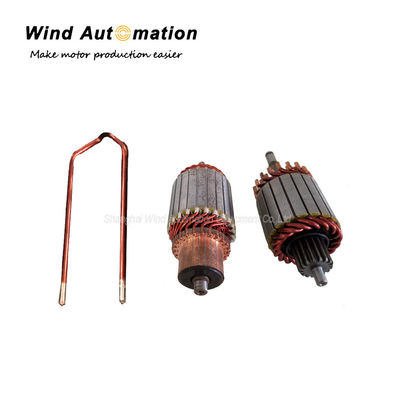

Form wire starter motor, oil pump motor armature round copper wire production,

(3) Configuration
Mitsubishi PLC
Weinview touch screen
Korea SPG enamel remover
Airtac penumatic unit
Schneider electronic unit

Round Wire Forming Machine Hairpin Winding Machine
