Aerospace Coils Winding Machine Hairpin Forming Machine

Large Image : Aerospace Coils Winding Machine Hairpin Forming Machine

Product Details:

Contact Now

Aerospace Coils Winding Machine Hairpin Forming Machine

Description

Model NO.:	WIND-AWF-R	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	50 Sets/Year

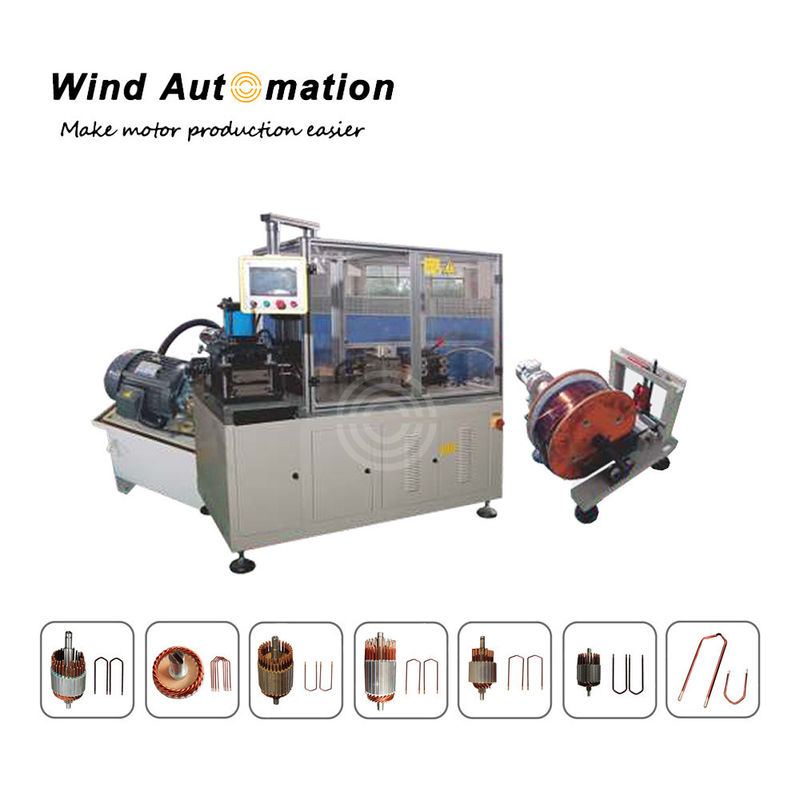

Aerospace Coils Winding Machine Hairpin Forming Machine

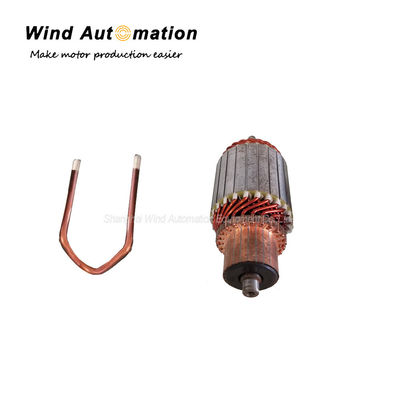

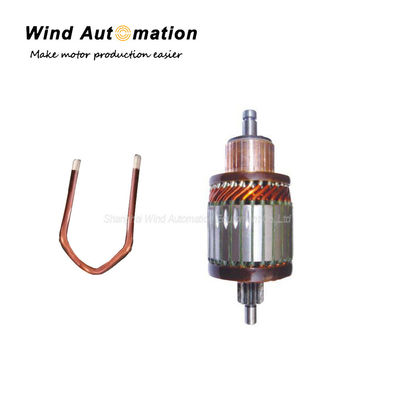

This hairpin forming machine is able to produce hairpins for armature with skewed slots. It is capable of producing hairpins with customized twisting angle.

(1) Application

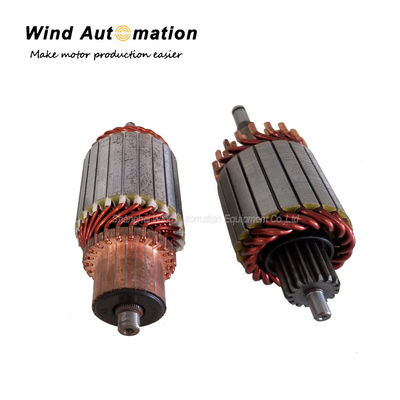

Suitable for starter motor, aerospace motor armature to do haripin coil forming.

(2)Specifications

Power Supply	AC 380V ±10% 50Hz
Air Pressure Supply	0.5~0.7Mpa
Machine Power	about 2 kW
Productivity	20~30 pc/min
Feeding length	150~400mm
Dimension	2500x810x1600mm

(3) Features
Wide application---meets all requirements of the Automotive Industry
Able to produce hairpins for armature with skewed slots
Mitsubishi PLC control, colorful touching screen
High repeatability of the hairpin's shape and dimensions
High efficiency, automation and productivity
Capable of producing hairpins with customized twisting angle

Aerospace Coils Winding Machine Hairpin Forming Machine
