Fully Automatic WIND-BC5 Armature Balancing Machine for 100 Sets/Year Manufacturing

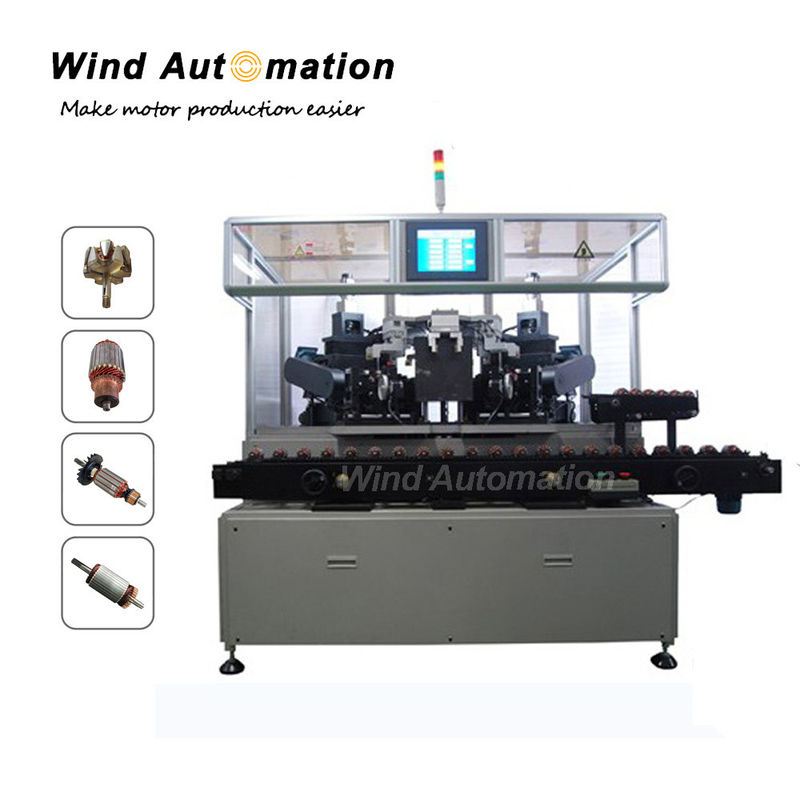

Large Image : Fully Automatic WIND-BC5 Armature Balancing Machine for 100 Sets/Year Manufacturing

Product Details:

Contact Now

Fully Automatic WIND-BC5 Armature Balancing Machine for 100 Sets/Year Manufacturing

Description

Model NO.:	WIND-BC5	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

5 Stations Fully Automatic Starter Armature Balancing Machine

This 5 stations fully automatic armature balancing machine does balancing process by weight removing. Two types cutters(R cutter or V cutter) can be chose to do weight removing. 5 working stations, mechanical arm and conveyor ensure the high automation and productivity of this machine. Rejected armature be transfer to specific conveyor automatically.

(1)Specification

Working station	5
Armature OD	40-60mm
Stack height	15-60mm
Armature weight	<1.6 KG
Cutting method	R-shape cutter
Balancing speed	1000-2200rpm
Cycle time	10-12s
Initial unbalance	According to armature radius and cutting depth
Air supply	0.4~0.6Mpa
Power supply	AC380V
Dimension	2000 x1700x1800 mm

(2)Feature
Suitable for the majority of armatures
Each time reset the machine before power off.
With mechanical arm and feeding conveyor
5 working stations, 1 for loading and unloading, 2 for balancing, 2 for testing
High quality level of the balancing process
Twice testing guarantees balancing accuracy
Servo drive systems providing high positioning accuracy while cutting
Compact design which allows easy and safe handling

(3)Application
The 5 stations fully automatic armature balancing machine is suitable for majority of armatures, like DC motor, universal motor used for home appliance, car and power tool motor armature.

5 Stations Fully Automatic Starter Armature Balancing Machine
