Middle Size Starter Motor Magnetic Field Coils Winding Machine for 100 Sets/Year Made

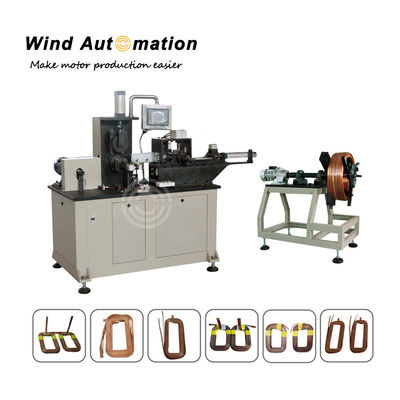

Large Image : Middle Size Starter Motor Magnetic Field Coils Winding Machine for 100 Sets/Year Made

Product Details:

Contact Now

Middle Size Starter Motor Magnetic Field Coils Winding Machine for 100 Sets/Year Made

Description

Model NO.:	WIND-PCW-F2	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Starter Motor Magnetic Field Coils Winding Machine

This winding machine integrates several machine stations in one automatic machine as follows: dereeler, straightening station, feeder, bending and twisting station, winding station, cut-off station. It can do auto winding, straightening, bending and twisting.

(1)Specifications

Wire OD	Less than 20mm
Winding speed	0~80r/min
Rotation diameter	160mm
Power Supply	AC 220V ±10% 50Hz
Air Pressure Supply	0.5~0.7Mpa
Machine Power	3 kW
Dimension	1500x800x1800mm

(2) Application
Suitable for various kinds of starter motor with rectangular wire coil.

(3) Features
Auto winding, straightening, bending and twisting
Precise pneumatic drive control of the coil winding
Short re-adjusting time
PLC controlled working operations
Completely automated winding process of the magnetic field coil
LCD display of all technical parameters and current status of the winding process
This machine can be customized accordingly
Self-diagnostic troubleshooting system
No skilled operator required

Contact Details

Shanghai Wind Automation Equipment Co.,Ltd
