WIND-AC-CW001 Miyachi Welding Power Commutator Hot Stacking Machine with Middle Size

Large Image : WIND-AC-CW001 Miyachi Welding Power Commutator Hot Stacking Machine with Middle Size

Product Details:

Contact Now

WIND-AC-CW001 Miyachi Welding Power Commutator Hot Stacking Machine with Middle Size

Description

Model NO.:	WIND-AC-CW001	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

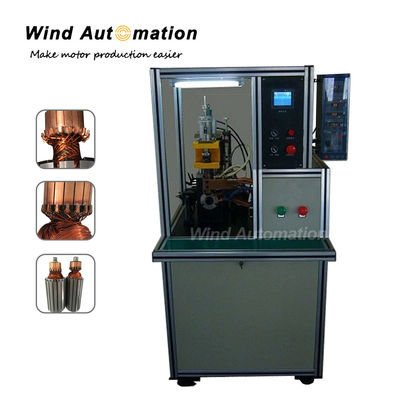

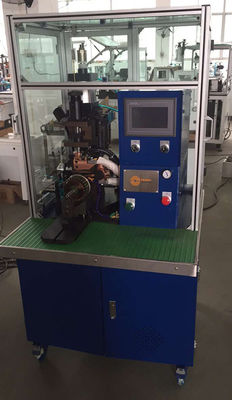

Miyachi Welding Power Commutator Hot Stacking Machine

The machine adapts AC pulse. The whole machine is controlled by MITSUBISHI PLC; it could control the exact pre-pressing /welding /transposition /hold time effectively. The operation is free from interference.

(1)Specification

Voltage	230V
Rated frequency	50-60Hz
Rated power	25KVA
Wire diameter	0.06-1.6 mm
Armature OD	0-100mm
Commutator OD	0-60mm
Stack length	0-350mm
Air source	0.3~0.5Mp
Cooling method	Water cooling and air cooling

(2)Application

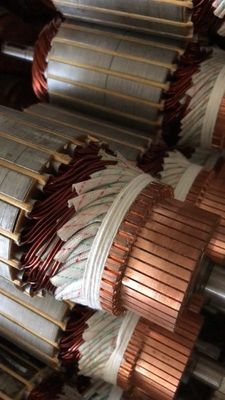

The machine is used for the starter of cars and motorcycle, DC motors, power tool motors, household appliances motors and series motors.

(3)Operation
1)Connect machine to air source and power supply.
2)Switch the button to Miyachi.
3)Turn on machine power switch.
4)Switch the two buttons under the touch screen to "Auto" and "Run" .
5)Switch the rough set to 2 and the accurate set to 8.
6) Power on Miyachi.
7) Press "Stop" button. Then press the "Start" button to begin fusing.

Miyachi Welding Power Commutator Hot Stacking Machine
