100 Sets/Year WIND-RT-1 Compressor Rotor Die Casting Testing Machine for B2B Markets

Large Image : 100 Sets/Year WIND-RT-1 Compressor Rotor Die Casting Testing Machine for B2B Markets

Product Details:

Contact Now

100 Sets/Year WIND-RT-1 Compressor Rotor Die Casting Testing Machine for B2B Markets

Description

Model NO.:	WIND-RT-1	Trademark:	Wind Automation
Origin:	China	HS Code:	9030390000
Production Capacity:	100 Sets/Year

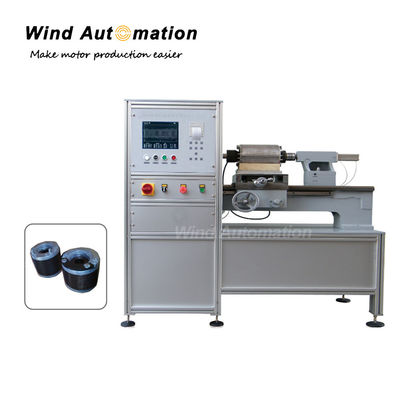

Compressor Rotor Aluminum Die Casting Rotor Testing Machine

This testing machine is suitable for aluminum rotor to do testing.

Specification

Rotor Diameter	30-130mm
Rotor Length	30-155mm
Air pressure	0.3MPa
The Number of Conduction-bar	10-100
Test Speed	100-1500rpm
Net Weight	Around 170KGS

Test item
Broken bars , too slim bars,
Porosity, sand holes,residues on bars,undercasting,
declination error,internal short circuit in bars
Alignment of core with bar
Improper end ring (Extra cost needed)

Ask:
Why the waveform next to the AC induction motor diecast rotor broken bar of will become larger by tester?
Answer:
When cut magnetic lines, the broken bar of aluminum die casting Rotor doesn't produce induced current,
So for the next bar of cast-aluminum rotor, the current is abrupt.

When Browhole (Porosity) occur, the bar is thin or too slim,
Porosity and sand holes standard should be defined by user as they are common

Compressor Rotor Aluminum Die Casting Rotor Testing Machine
