Aluminum Die Casting Rotor Testing Machine

Large Image : Aluminum Die Casting Rotor Testing Machine

Product Details:

Contact Now

Aluminum Die Casting Rotor Testing Machine

Description

Model NO.:	WIND-RT-1	Testing Service:	Engineers Avaiable To Service Overseas
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	9030390000	Production Capacity:	100 Sets/Year
Package Size:	1200.00cm * 800.00cm * 1450.00cm	Package Gross Weight:	300.000kg

Aluminum Die Casting Rotor Testing Machine

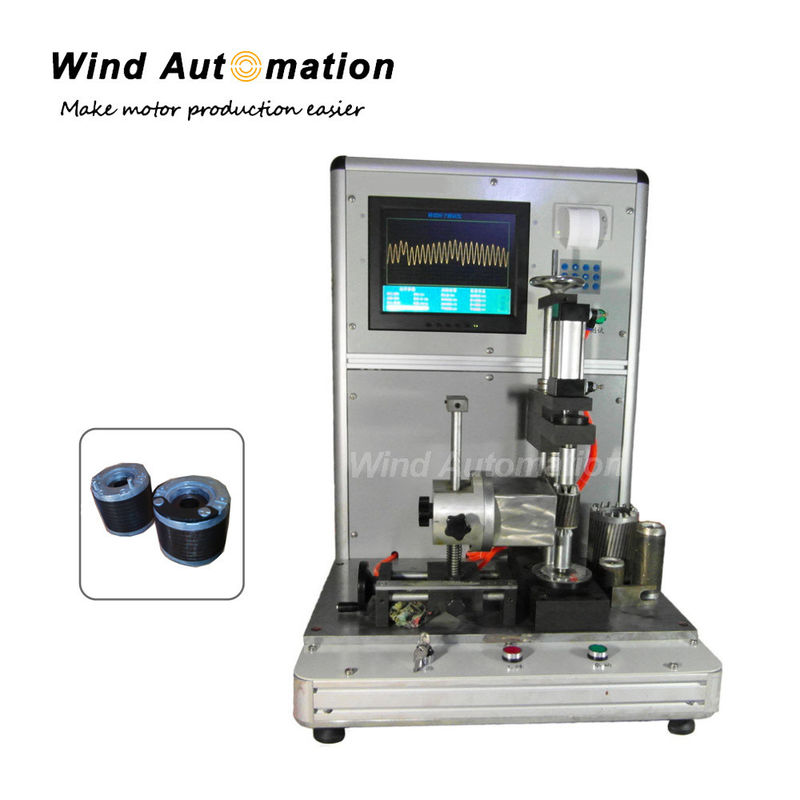

WIND-RT-1 rotor testing machine use high-precision sensor to detect rotor signals, operating simple and easy, judging defects of broken bar and thin bar automatically and then automatic alarm, the data can be stored and printed.

Test item:
Broken bars , too slim bars,
Porosity, sand holes,residues on bars,undercasting,
declination error,internal short circuit in bars
Alignment of core with bar
Improper end ring (Extra cost needed)

Compressors motor rotor quality tester Technical Parameter:

Rotor Diameter	30-130mm
Rotor Length	30-155mm
Air pressure	0.3MPa
The Number of Conduction-bar	10-100
Test Speed	100-1500rpm
Net Weight	Around 170KGS

Ask:

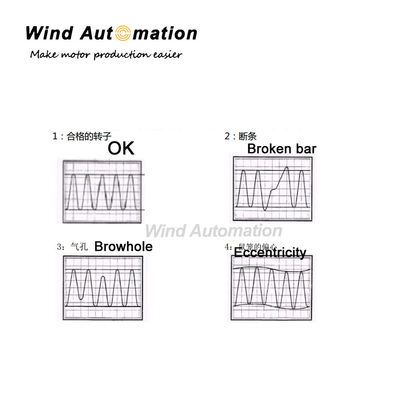

Why the waveform next to the AC induction motor diecast rotor broken bar of will become larger by tester?
Answer:
When cut magnetic lines, the broken bar of aluminum die casting Rotor doesn't produce induced current,
So for the next bar of cast-aluminum rotor, the current is abrupt.

When Browhole (Porosity) occur, the bar is thin or too slim,
Porosity and sand holes standard should be defined by user as they are common

Test Concept:

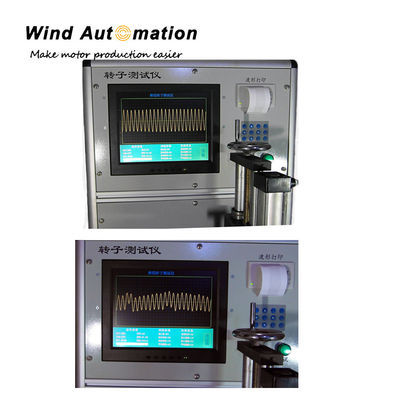

By using high-precision sensor to detect rotor signals, operating simple and easy,

judging defects of broken bar and thin bar automatically and then automatic alarm,

the data can be stored and print

When sending inquiry
Fixture is related to rotor ID,OD, Length, End ring height

Aluminum die casting Rotor testing machine videos

WIND-RT-1 rotor testing machine use high-precision sensor to detect rotor signals,
operating simple and easy, judging defects of broken bar and thin bar too slim bars,
automatically and then automatic alarm, the data can be stored and printed.
