Middle Size Armature Coil Winder for Power Tool Motor Production Performance

Large Image : Middle Size Armature Coil Winder for Power Tool Motor Production Performance

Product Details:

Contact Now

Middle Size Armature Coil Winder for Power Tool Motor Production Performance

Description

Model NO.:	WIND-SAW	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

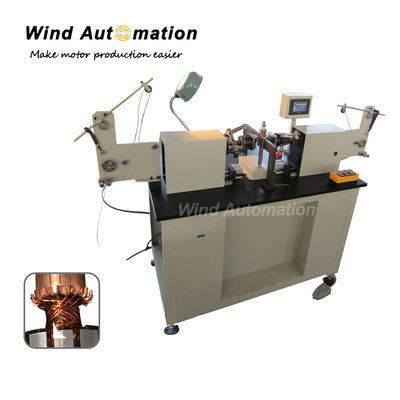

Armature Coil Winder for Power Tool Motor

This machine is used to wind hook type commuator armature. Hooking should be done manuall. Clamping, winding, indexing will be done by machine automatically.

(1) Application

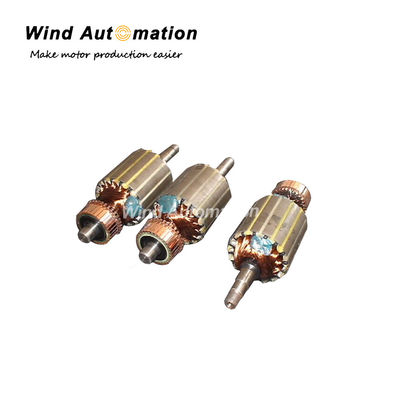

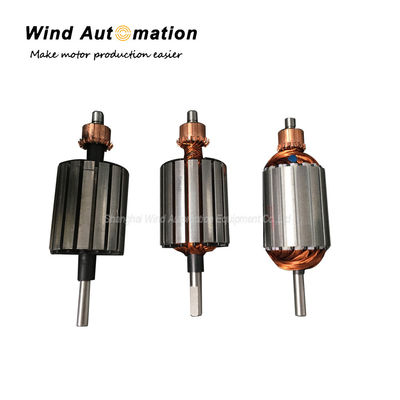

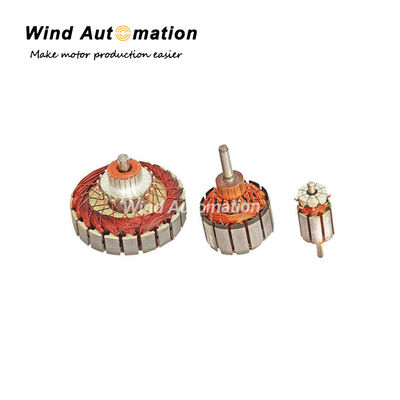

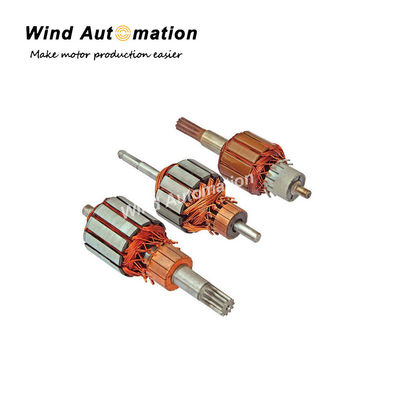

Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(2) Specification

Wire Diameter	0.08-1.08mm
Flyer Speed	0-1400r/min
Flyer No.	2
Turn No.	0-9999
Power	0.8KW
Power supply	220V±10%, 50HZ

(3) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
