Middle Size Automatic Flyer Winding Machine for Vacuum Cleaner Motor Armature Coils

Large Image : Middle Size Automatic Flyer Winding Machine for Vacuum Cleaner Motor Armature Coils

Product Details:

Contact Now

Middle Size Automatic Flyer Winding Machine for Vacuum Cleaner Motor Armature Coils

Description

Model NO.:	WIND-SAW	Automatic:	Automatic
Transport Package:	Wooden Case	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

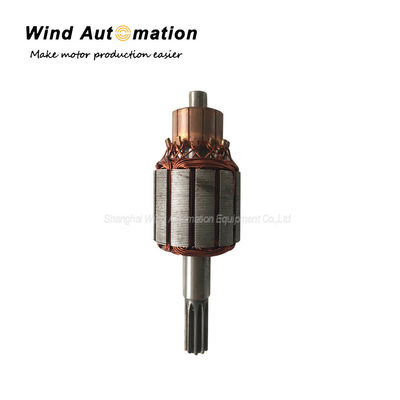

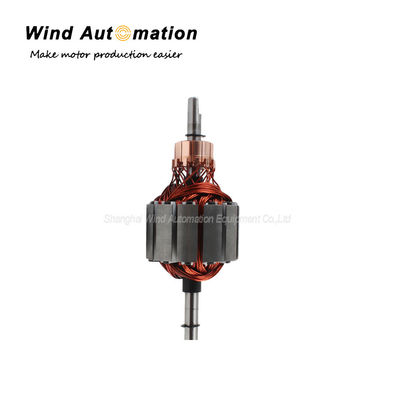

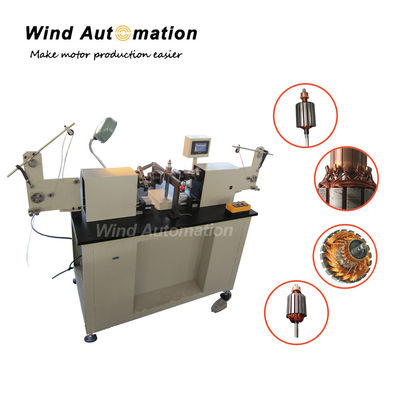

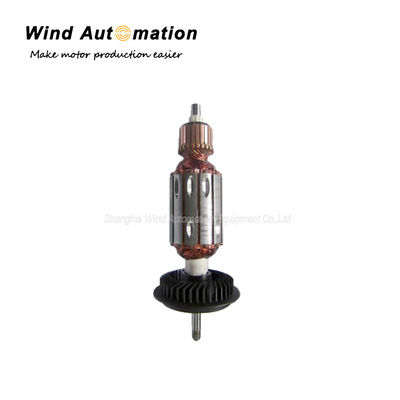

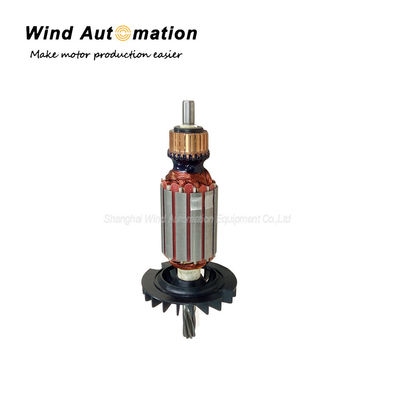

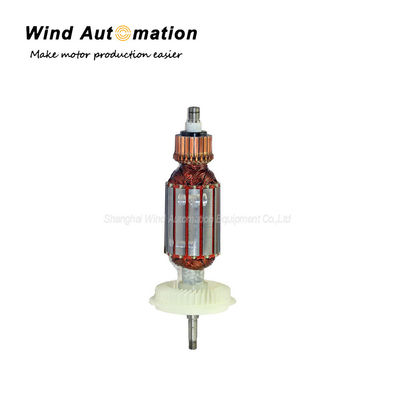

Flyer Winding Machine for Vacuum Cleaner Motor Armature Coils

This is a semi-auto type winding machine. Winding and cutting will be done by machine but hooking, loading, unloading should be done manually.

(1) Application
Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(2) Specification

Wire Diameter	0.08-1.08mm
Flyer Speed	0-1400r/min
Flyer No.	2
Turn No.	0-9999
Power	0.8KW
Power supply	220V±10%, 50HZ

(3) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
