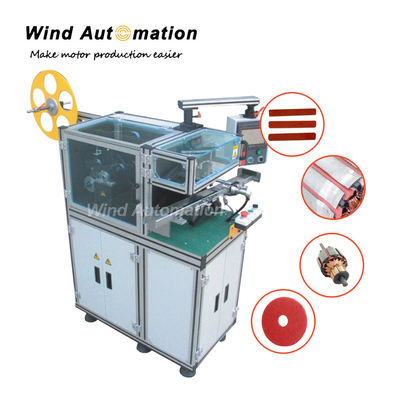

WIND-IW-1 Middle Size Pump Motor Automatic Wedge Inserting Machine for Manufacturing

Large Image : WIND-IW-1 Middle Size Pump Motor Automatic Wedge Inserting Machine for Manufacturing

Product Details:

Contact Now

WIND-IW-1 Middle Size Pump Motor Automatic Wedge Inserting Machine for Manufacturing

Description

Model NO.:	WIND-IW-1	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Pump Motor Automatic Wedge Inserting Machine

During machine running under automatic mode, if user wants to stop the machine immediately, press the emergency stop button. Then machine will stop running. Press start button to run the machine again.

(1)Specification

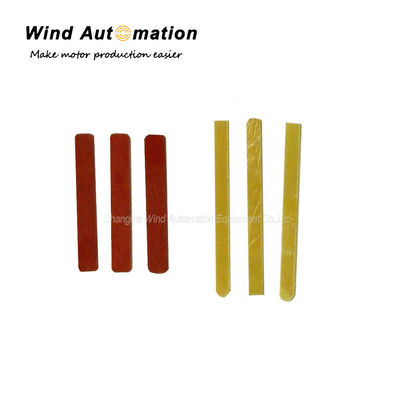

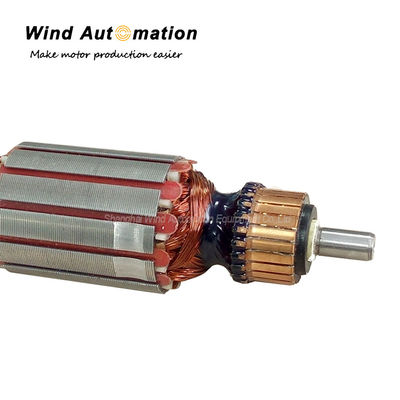

Wedge Shape	Flat, U or R shape
Thickness of wedge	0.2 mm ~ 2.0 mm
Efficiency	0.5~0.8sec/per slot

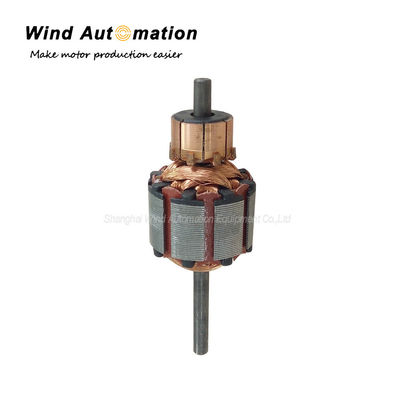

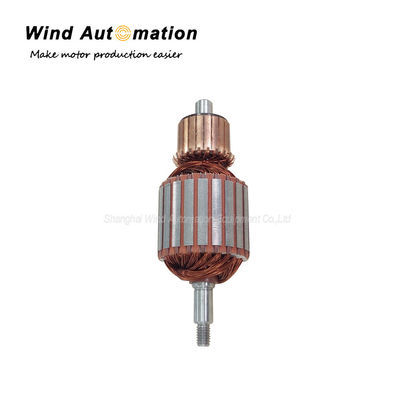

Armature OD	20-55mm
Length of lamination	Max 60mm
Shaft length	32~250mm
Shaft OD	6~20mm
Slot number	8-24 slots
Commutator OD	16~50mm
Air pressure	4~6kg/cm2
Voltage	AC220V±10%, 50/60Hz
Machine power	1.0KW
Weight	about 400Kg
Dimension	910 mm x 880 mm x 1300mm

(2)Feature
PLC control
Adjustable for different armature lengths
Quick and easy readjustment to other armature types
Precise wedge length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise wedge formation and placement

(3)Maintenance
1) In order to make sure the accuracy and duration, inject lubricating oil to all the moving parts every 12-15 days so as to reduce the abrasion and increase the efficiency. The moving parts has been marked 1~8 in the below picture. Besides the moving parts, the indexing transferring parts, paper forming parts, other transferring parts and bearing place are also need to be injected lubricating oil.
2) Clean the pressing wheel and discharge tooling by air gun regularly. Clean them from back to front so that the insulation paper comes out easily during operation.
3) Add anti-rust oil to the machine regularly if the environment is humid.
4) The machine frame is made of alloy metal so do not knock it firmly.
5) Clean the surface of the machine regularly.

Pump Motor Automatic Wedge Inserting Machine
