Product Details:
|

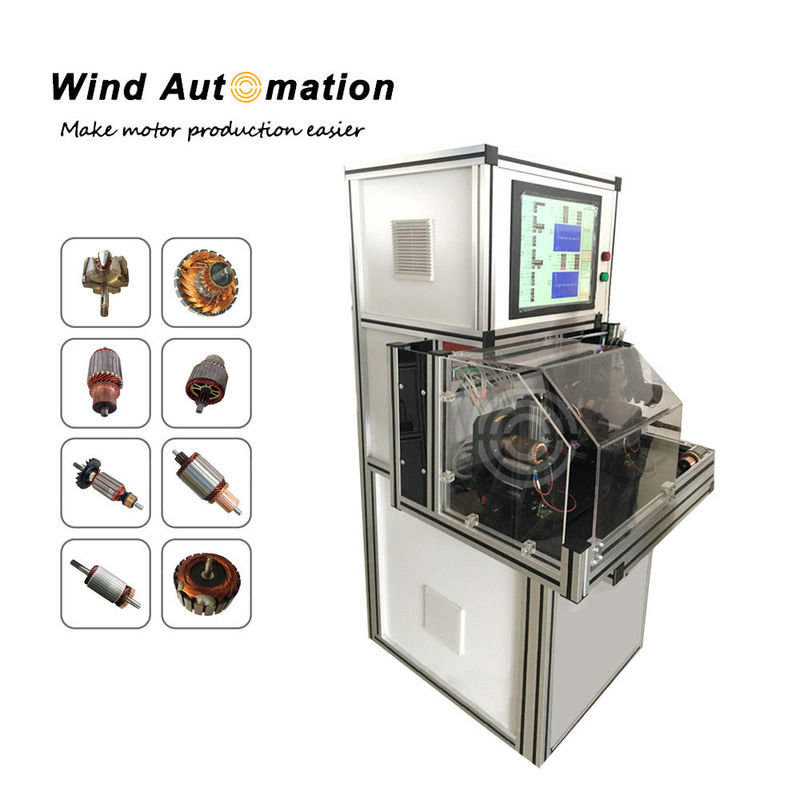

| Model NO.: | WIND-AT-200 | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |
| Test Items | Test Description | Accuracy |
| Bar to Bar resistance | 0.1mΩ~1Ω (Automatic ambient temperature compensation) | ≤±0.5% Full scale |
| Welding resistance | 0.001mΩ-10mΩ | ±10μΩ |
| Cross resistance | 0.1mΩ~1Ω (Automatic ambient temperature compensation) | ≤±0.5% Full scale |
| Surge | 100-3000Vpp (Max 36sets waveform) | ±2.5% |
| Isolation resistance | DC 500V/1000V | 0.1-500MΩ ≤±2.5% Full scale |
| Hipot | AC 100-1000V | 0-20mA ≤±2.5% Full scale |
