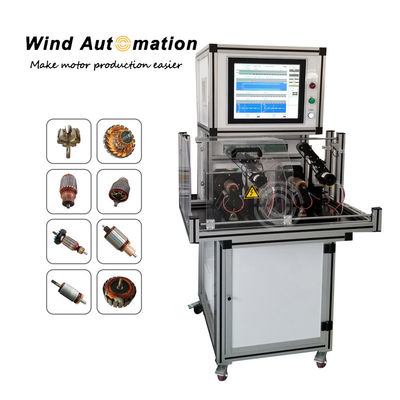

Middle Size Car Condenser Motor Armature Testing Machine Hipot Tester 100 Sets/Year

Large Image : Middle Size Car Condenser Motor Armature Testing Machine Hipot Tester 100 Sets/Year

Product Details:

Contact Now

Middle Size Car Condenser Motor Armature Testing Machine Hipot Tester 100 Sets/Year

Description

Model NO.:	WIND-AT-200	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Car Condenser Motor Armature Testing Machine Hipot Tester

This armature testing machine has various testing options available to do testing. It can has two working stations, but once only test one armature. All the test quality report can be generated and printed.Machine

(1) Features
1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
  Four-terminal measurement to ensure accuracy
2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
  Six-terminal measurement to ensure accuracy
3. Cross resistance 0.01mΩ-10mΩ
  Four-terminal measurement to ensure accuracy
4.Surge 100-1000V (100V/time)
   Pulse crest:0.5u sec, Frequency 1~40MHz
   Standard waveform is Write, OK waveform is Green, NG waveform is Red
5.Isolation resistance  DC 500V
   Testing time:1~10s (0.1s/time)
   Range:1~500MΩ
   Accuracy: ≤±5%
6.Hipot AC 100-1000V
   Testing time:1~10s (0.1s/time)

(2) Application
Suitable for various types of DC motor armatures to do performance testing.

(3)Machine configuration
15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac
Car Condenser Motor Armature Testing Machine Hipot Tester
