WIND-2-TS Two Poles Stator Automatic Coil Winder for 100 Sets/Year

Large Image : WIND-2-TS Two Poles Stator Automatic Coil Winder for 100 Sets/Year

Product Details:

Contact Now

WIND-2-TS Two Poles Stator Automatic Coil Winder for 100 Sets/Year

Description

Model NO.:	WIND-2-TS	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

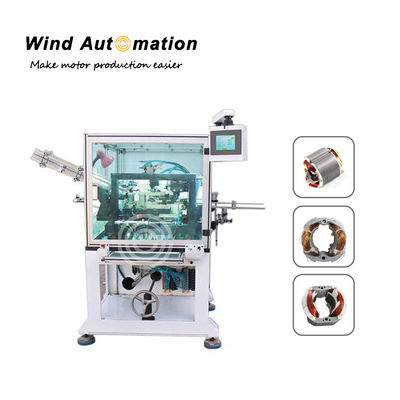

Two Poles Stator Automatic Coil Winder

This two poles stator winder is capable of producing coils for two poles stators. This machine can automatically do feeding, winding, clamping, and cutting. It can be used as stand alone machine or integrated into a production line.

(1)Specification

Wire diameter	0.15~1.3mm
Stator OD	50~150mm
Stator ID	20~60mm
Stack height	10~70mm
Turn No.	0~99999
Pole No.	Two
Main spindle RPM	Max 450RPM
Air source	5~7kg/cm3
Movement	Stepping/Auto
Voltage	380v/50Hz
Power	4.5KW
Weight	1200Kg
Dimension	1500X2100X1650mm
