Aluminum Wire Stator Automatic Coil Winding Machine with 1200.000kg Gross Weight Package

Large Image : Aluminum Wire Stator Automatic Coil Winding Machine with 1200.000kg Gross Weight Package

Product Details:

Contact Now

Aluminum Wire Stator Automatic Coil Winding Machine with 1200.000kg Gross Weight Package

Description

Model NO.:	WIND-ASW-2	Customized Service:	Provided
Loading Unloading:	Loading / Unloading Automatically	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year	Package Size:	2500.00cm * 1200.00cm * 1850.00cm
Package Gross Weight:	1200.000kg

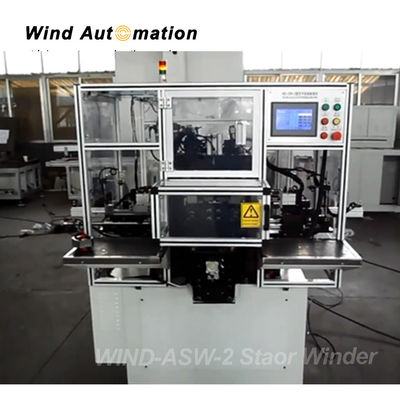

Shaded Motor Power Tool Motor Stator Automatic Coil Winding Machine

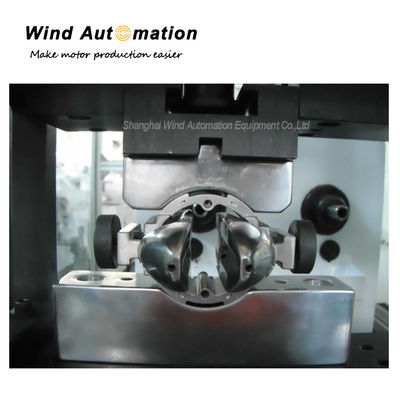

This machine is specially designed for two-poles series motor, shaded pole motor, power tool motor stator to do coil winding. It is controlled by Mitsubishi PLC. All parameter can be programmed on touch screen. Two working station do synchronous winding.

(1) Specification

Power supply	AC 220V
Air pressure	0.5~0.7MPa
Total power	2KW
Winding speed	0~300r/min
Wire range	0.11~1.0mm
Stator ID	Min 25mm
Stack length	Max 50mm
Slot width	Min 2.5mm

(2)Application

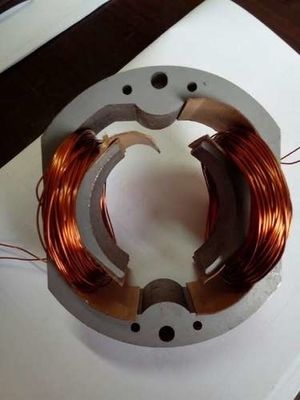

suitable for two poles stators.

(3)Features

No skilled operator required

This machine can be customized accordingly

Rigid design frame

Fully automatic working cycle after loading of the stator

Quick change-over of tooling

PLC control, fault display

Contact Details

Shanghai Wind Automation Equipment Co.,Ltd
