Product Details:
|
| Model NO.: | WIND-160-PF | Trademark: | Wind Automation |
|---|---|---|---|
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year |

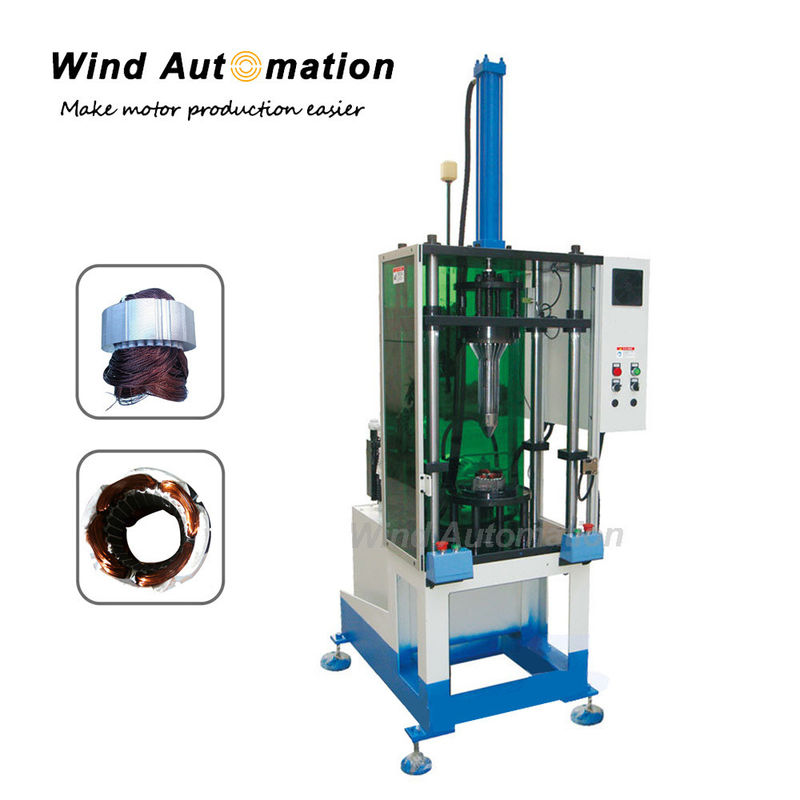

The pre-forming machine is specially designed for stators with two coil insertion requirement. After forming, coil will be expanded and easy for the successive coil insertion.
(1) Specification
| Stack length | 15~100mm |
| Stator ID | 30~100mm |
| Stator OD | Max 160mm |
| Oil pump displacement | 20F |
| Power supply | 380V 50HZ |
| Weight | 800KG |
| Dimension | 1200x700x2200mm |
(2) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor, generator motor and pump motor.
(3) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
