Product Details:
|
| Model NO.: | WIND-160-MF | Trademark: | Wind Automation |
|---|---|---|---|
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year |

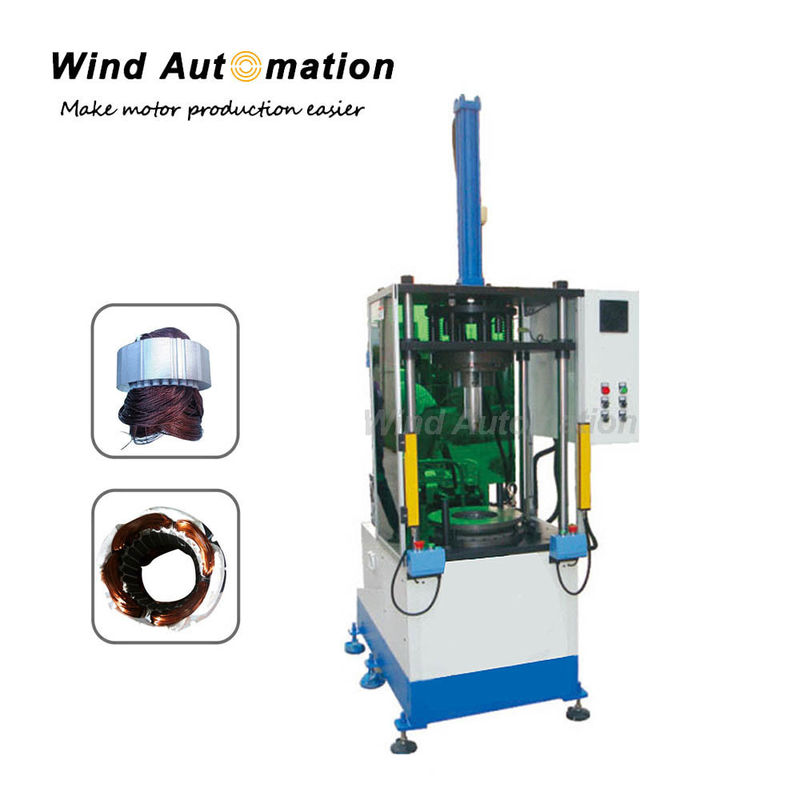

This machine is controlled by PLC, driven by hydraulic system. There's an individual guard teeth in each slot to prevent wire jump during forming process.
(1) Specification
| Stack length | 16~100mm |
| Stator ID | 30~100mm |
| Stator OD | Max 160mm |
| Oil pump displacement | 20F |
| Power supply | 380V 50HZ |
| Weight | 1000KG |
| Dimension | 1200x750x2500mm |
(2) Feature
High quality level of the forming process
Manual loading and unloading
Hydraulic driven, PLC control
Can be customized accordingly
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
(3) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor, generator motor and pump motor.
