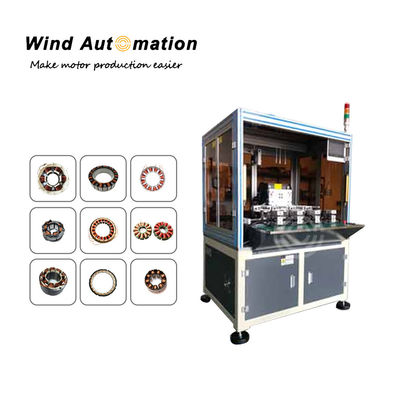

680kg Fully Automatic Brushless Motor Coil Winding Machine with Middle Size

Large Image : 680kg Fully Automatic Brushless Motor Coil Winding Machine with Middle Size

Product Details:

Contact Now

680kg Fully Automatic Brushless Motor Coil Winding Machine with Middle Size

Description

Model NO.:	WIND-BLDC-4	Weight:	680kg
Dimension:	1000X1100X1700mm	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

Fully Automatic Brushless Motor Coil Winding Machine

This coil winding machine is of high efficiency and automation. Except for loading and unloading, other processes will be done by this needle winder automatically. Therefore, no skilled operator needed to operate this machine.

(1)Features
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 800r/min
Wide application and strong applicability
High efficiency and production
Precise servo drive control of the wire feeding
Provide customized service

(2)Specification

Working station	4
Stator OD	20~100mm
Stator ID	12~80mm
Stack length	5~70mm
Wire diameter	0.08~1.0mm
Spindle spacing	155mm
Drive servo	3000W 1 set
Indexing servo	2000W 2 sets
Arraying servo	750W 2 sets
Air source	7 kg/cm
Power supply	380V 50HZ 15A
Dimension	1000x1100x1700mm
Weight	680KG

(3) Application

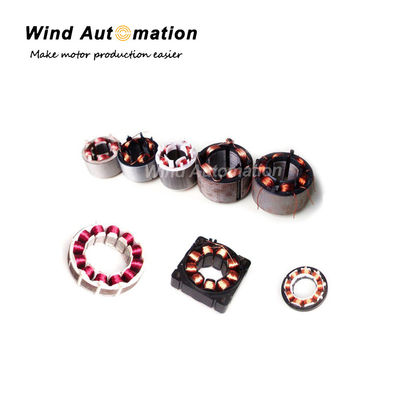

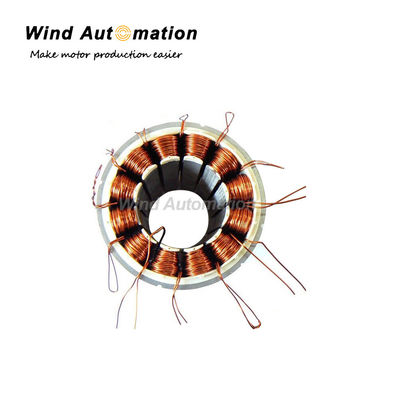

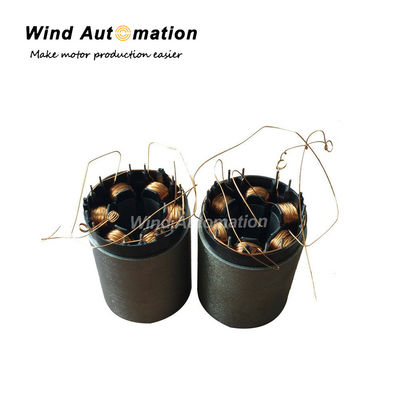

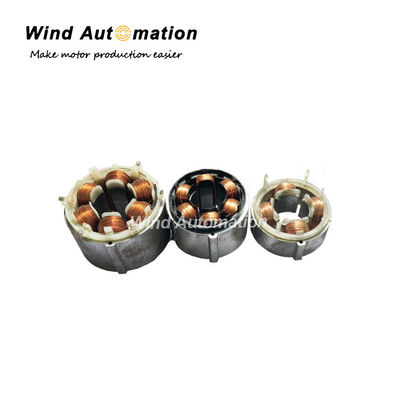

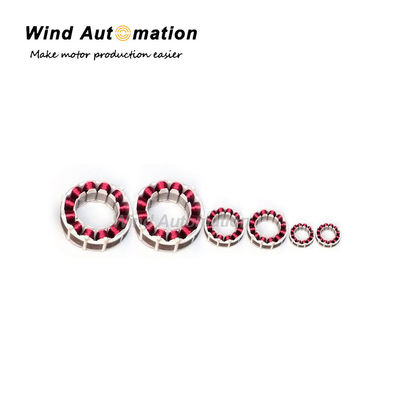

It is suitable for brushless motors, home appliance motors, medical equipment motors, industrial fans, pump motors, hybrid car vehicles motors, rotary transformers, sensors, servo motors, stepper motors, vacuum cleaner motors, power tool motors.

Fully Automatic Brushless Motor Coil Winding Machine
