Customizable WIND-BLDC-Line Stator Mass Production Assembly Machine 1330X1000X2000mm

Large Image : Customizable WIND-BLDC-Line Stator Mass Production Assembly Machine 1330X1000X2000mm

Product Details:

Contact Now

Customizable WIND-BLDC-Line Stator Mass Production Assembly Machine 1330X1000X2000mm

Description

Model NO.:	WIND-BLDC-Line	Weight:	1200 Kg
Dimension:	1330X1000X2000mm	After-Sales Service:	Engineers Avaiable To Service Overseas
Warranty:	12 Months	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

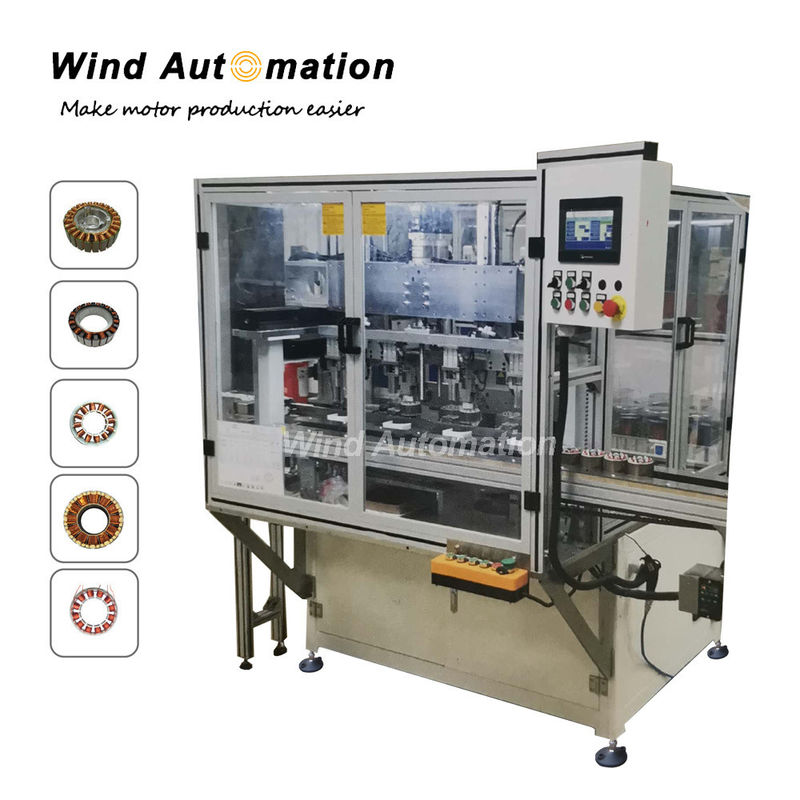

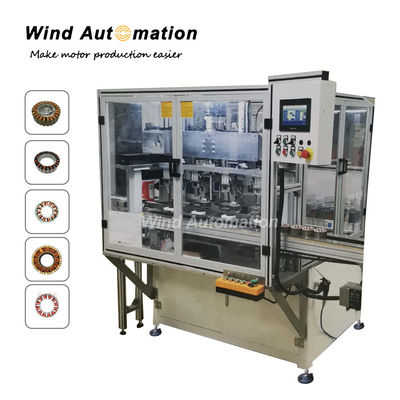

Automatic BLDC Motor Winding Line Stator Mass Production Assembly Machine
Customizable WIND-BLDC-Line Stator Mass Production Assembly Machine 1330X1000X2000mm 0

This BLDC winding line is suitable for mass production of BLDC motor stators. Manual loading and unnloading are replaced with mechanical arm and conveyor. Controlled by PLC and HIM, all parameters can be displayed and programmed.

(1) Specification

Working station	4
Stator ID	10~100mm
Stack length	Max 100mm
Stator OD	Max 120mm
Wire range	0.1-1.2mm
Spindle number	8 servo control
Power	12 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1330x1000x2000mm
Weight	1200KG

(2) Application

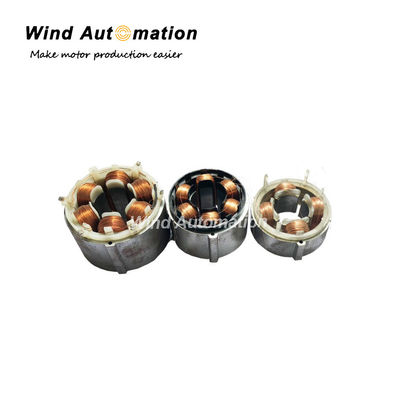

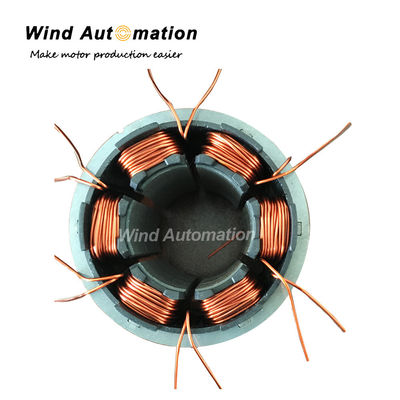

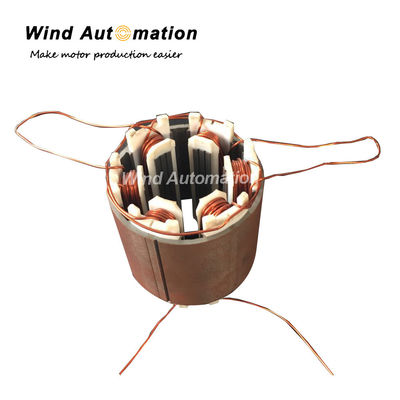

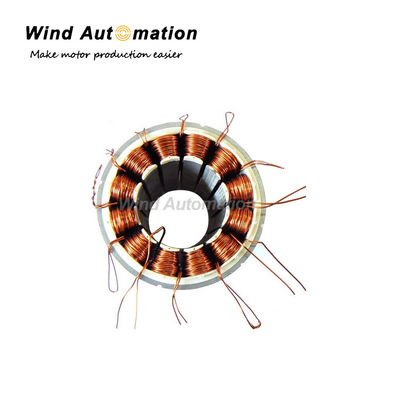

It is suitable for mass production of brushless motor stators.

(3) Features
With conveyor and mechanical arm
High efficiency and production
Precise servo drive control of the wire feeding
4 working stations to do synchronous winding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

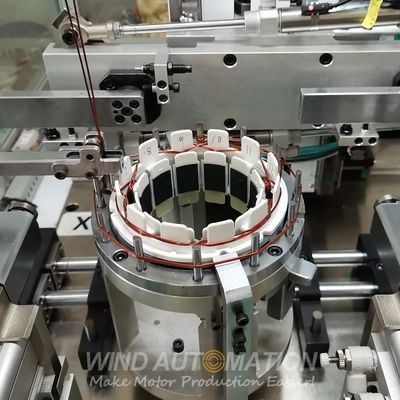

(4) Machine working station
Customizable WIND-BLDC-Line Stator Mass Production Assembly Machine 1330X1000X2000mm 1
