Rotary Encoder Resolvers Motor Rotor Stator Winding Machine for Electrical Car Middle Size

Large Image : Rotary Encoder Resolvers Motor Rotor Stator Winding Machine for Electrical Car Middle Size

Product Details:

Contact Now

Rotary Encoder Resolvers Motor Rotor Stator Winding Machine for Electrical Car Middle Size

Description

Model NO.:	WIND-HMW-205D	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

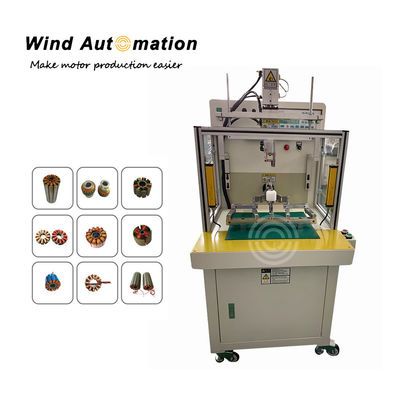

Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine for Electrical Car

This flyer winding machine can do multi-wire concentrated winding as well as single wire winding. Standard machine covers stator OD range from 20mm to 180mm. While customized machine can wind stator exceed 200mm with special winding fixture. The adoption of ceramic winding nozzle reduces the damage of copper wire during winding.

(1)Specification

Working station	1
Stator OD	20~180mm
Stack length	5~70mm
Slot number	2~36
Wire diameter	0.1~1.0mm
Arraying width	30mm
Spindle speed	0~1000 RPM
Controller	Motion controller
Counting accuracy	±0.05 cycle
Power supply	AC 220 V, 50HZ
Dimension	850x630x1300mm
Weight	350KG

(2)Application

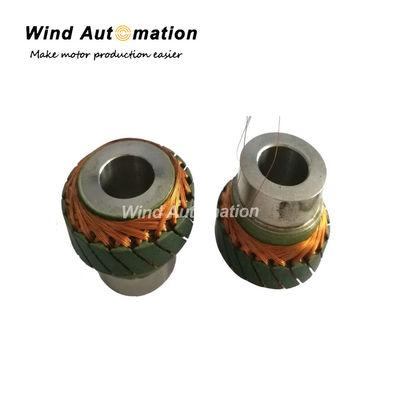

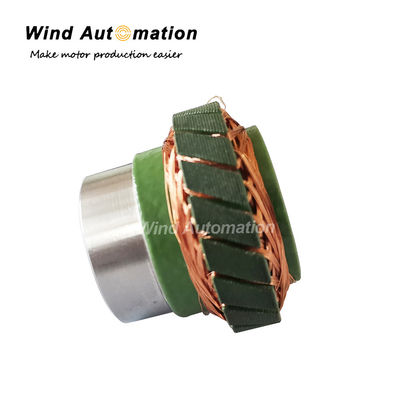

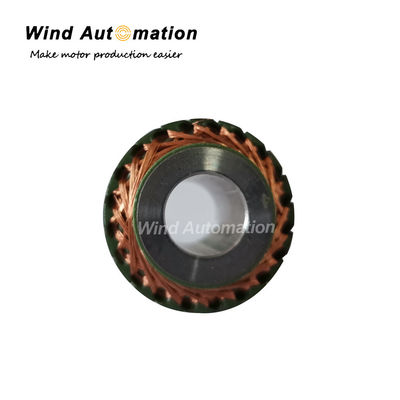

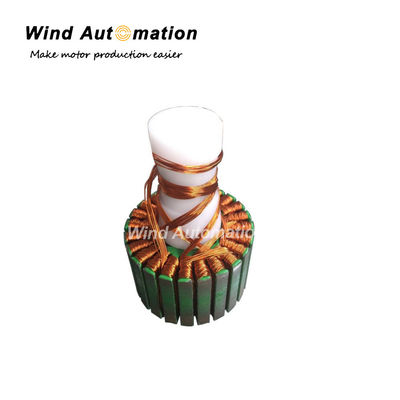

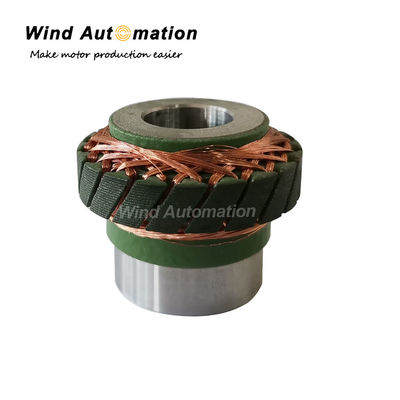

It is suitable for external winding of areospace motor, twisting car motor, balance motor, plant protection machine motor.

(3)Features
Multi-wire concentrated winding available
Wide stator OD range
Ceramic winding nozzle
Customized as per requirement
Easy to operate
Fast demolding design
