1100X800X2000mm Linear Stator Open Slot Stator Needle Winding Machine for Products

Large Image : 1100X800X2000mm Linear Stator Open Slot Stator Needle Winding Machine for Products

Product Details:

Contact Now

1100X800X2000mm Linear Stator Open Slot Stator Needle Winding Machine for Products

Description

Model NO.:	WIND-ZR158	Weight:	900 Kg
Dimension:	1100X800X2000mm	Air Source:	0.4~0.7 MPa
Needle Winder Service:	Engineers Avaiable To Service Overseas	Transport Package:	Wooden Case
Specification:	Middle Size	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

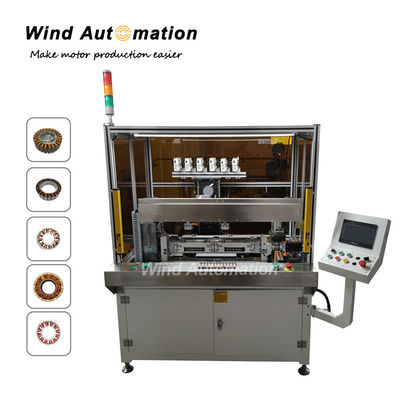

Linear Stator Open Slot Stator Needle Winding Machine

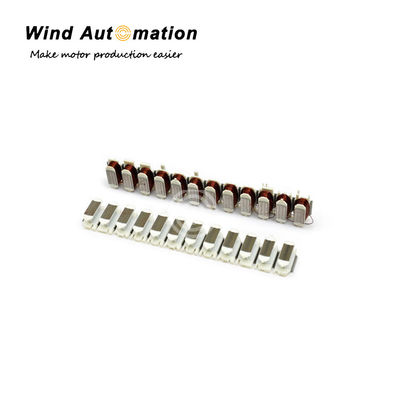

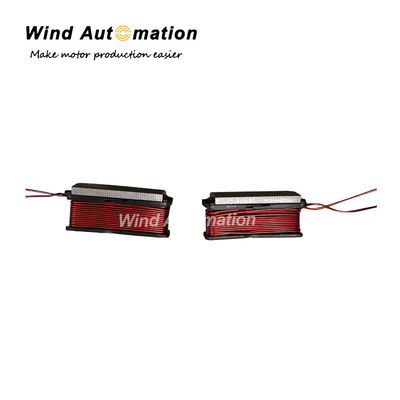

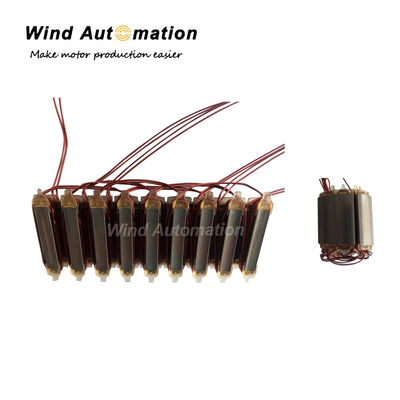

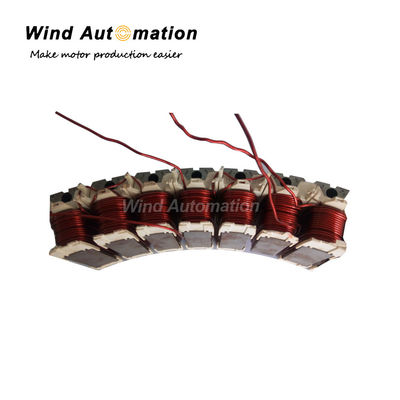

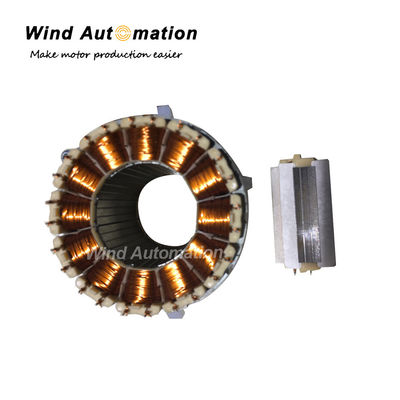

This type of needle winding machine is used to wind coils for open slot stators, linear stators, expecially stators with narrow slot but high slot filling rate. 2 working stations greatly improves machine efficiency and production cycle.

(1) Specification

Working station	2
Stator OD	Max 400mm
Stack length	Max 100mm
Stator weight	Max 3KG
Wire range	0.1-0.8mm
Winding speed	600rpm
Power	8 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1100x800x2000mm
Weight	900KG

(2) Application
It is suitable for various kinds of open slot stators with high slot filling rate.

(3) Features
Friendly designed operator's interface
2 working stations to do synchronous winding
High efficiency and production
Precise servo drive control of the wire feeding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

Linear Stator Open Slot Stator Needle Winding Machine
