Product Details:
|
| Model NO.: | WIND-Y32-3T | Customized Service: | Provided |
|---|---|---|---|
| Transport Package: | Wooden Case | Specification: | Middle Size |
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |
| Package Size: | 1000.00cm * 800.00cm * 1750.00cm | Package Gross Weight: | 700.000kg |
(1) Features
Controlled by PLC
Driven by hydraulic pressure
With grating protection system
Easy to operate and set on screen
100% satisfaction good feedback
High quality level of the shaft pressing process
Can be customized accordingly
Manual loading and unloading
(2) Specifications
| Nominal force (hydraulic cylinder) | KN | 25 (2.5Ton) |
| Pressure sensor | KN | 30 |
| System pressure | Mpa | 5.5 |
| Maximum stroke of oil cylinder | mm | 200 |
| Maximum stroke of electronic ruler | mm | 250 |
| Rapid depressing speed | mm/s | 50 |
| Slow depressing speed | mm/s | 0~50 |
| Return speed | mm/s | 80 |
| Oil pump | / | Vane pump |
| Motor | kw | 1.5 |
| Voltage | V | 380 |
| Outline dimensions ( L × W × H ) | mm | 950X650X1800 |
(3) Application

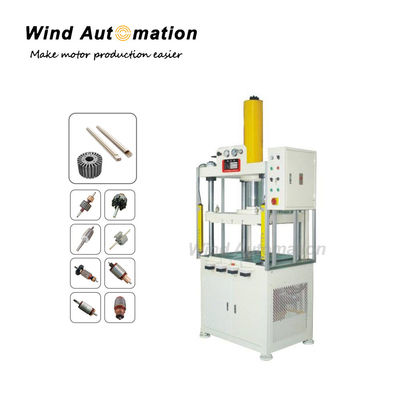

This shaft pressing machine is suitable for starter rotors, automotive car motor.
(4) Operation process
Manually load workpiece and shaft
Two hands press start button
Machine begins to work, cylinder moves downward
Unload finished workpiece
