Product Details:
|
| Model NO.: | WIND-SZ | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

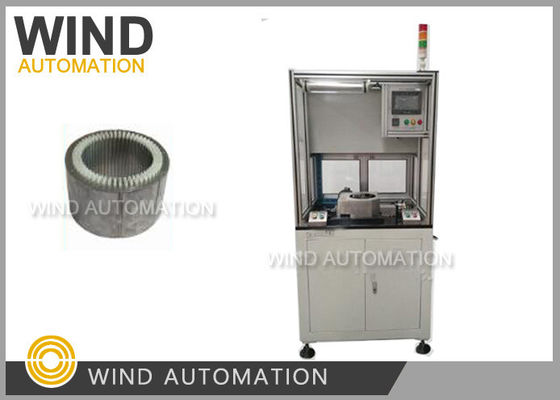

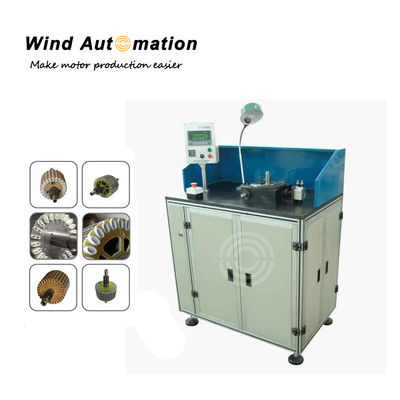

This paper inserting machine is for automobile starter motor armature slot insulation, it automatic forming shaping the s shape cell and insert to starter armature, Wind Automation also supply machines for different shape such as В-,S-,C-,O-,V-shaped and continuous armature slot insulation forming and insertion, double station improve the production efficiency.
| Supply voltage | 220V+/-10%, 50Hz |
| Air pressure | 0.5~0.7MPa |
| Total power | 2KW |
| Armature Core thickness | <60mm |
| Rotor OD | <80mm |
| Armature Slots | 3~99 slots |
| Dimension | 1100*700*1300mm |
Insulation material thickness: 0.18~0.2mm
Armature stack height: Max 100mm
Power Supply: 220V±10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Heating temperater: 70~100ºC
Weight: Around 700KGS
Dimension: 1200*650*1500mm
Wind Automation also have similar design machines for different shape such as В-,S-,C-,O-,V-shaped
and continuous armature slot insulation forming and insertion, double station to improve the production efficiency.

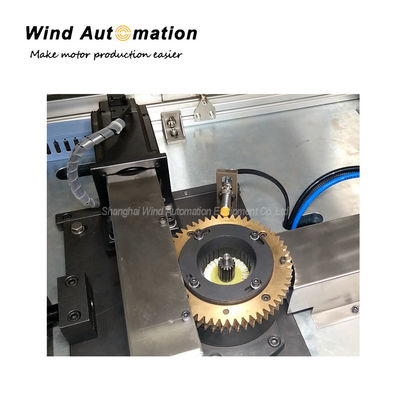

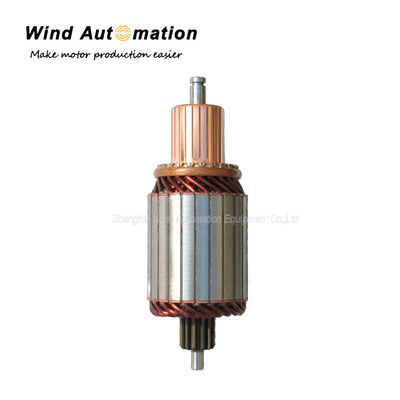

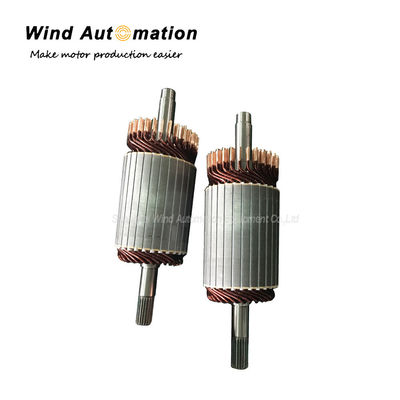

Armature on the Paper insertion machine
