Product Details:
|
| Model NO.: | WIND-SZ-1 | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

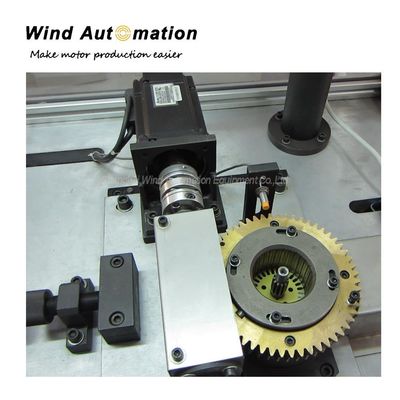

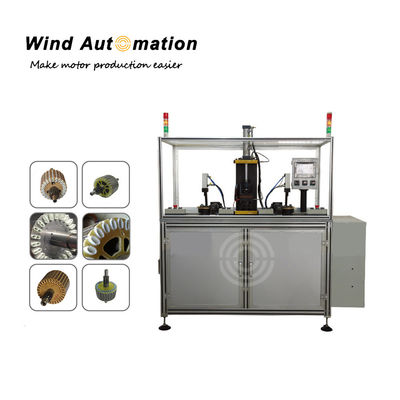

This armature paper inserting machine is designed for both S and O shaped slot insulation. It can do automatic paper heating, shaping, cutting and inserting. Except for manual loading and unloading, all the other process will be done by machine.
(1) Specifications
| Rotor stack length | Max 100mm |
| Paper thickness | 0.18~0.2mm |
| Heating temperature | 70~100ºC |
| Air source | 0.5 ~ 0.7MPa |
| Input Power Source | 220V±10% 50Hz |
| Weight | 700KG |
| Dimension | 1200*650*1500mm |
(2) Application

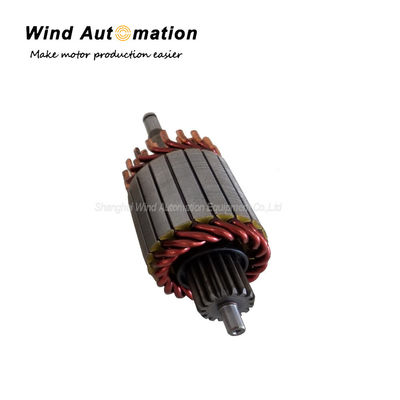

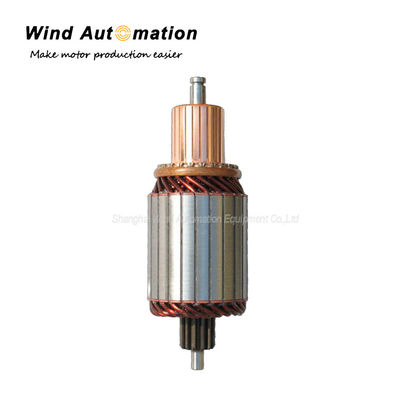

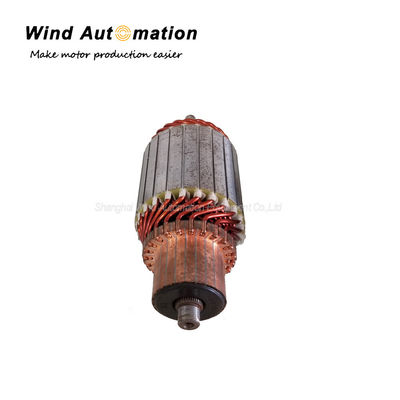

This insulation paper inserting machine is suitable for starter rotors, automotive and aircraft motor rotors to do slot paper insertion.
(3) Features
Capable of producing both O-shape or S-shape slot insulation
High productivity, 1s/slot
Edge folding length and insulation paper length adjustable
Manual loading and unloading
High quality level of the paper inserting process
After paper inserted, no deformation of rotor or lamination.
Easy for operation, No skilled operator required
Quick and easy readjustment for other types of armatures
Parameter of different models can be edited, modified and displayed.
