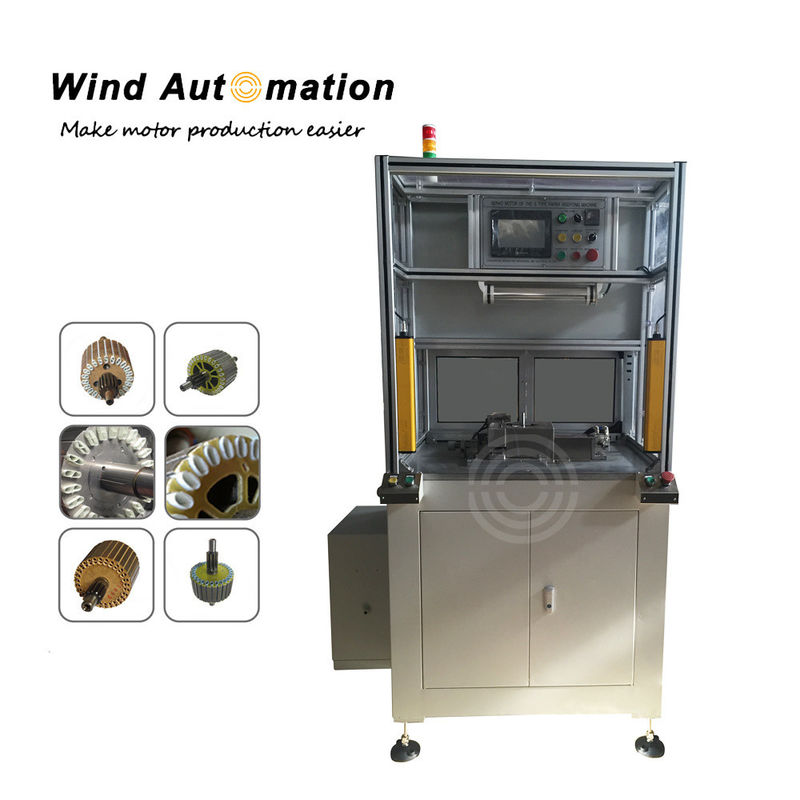

Industrial WIND-SZ-2 Armature Insulation Paper Inserter Slot Paper Inserting Machine

Large Image : Industrial WIND-SZ-2 Armature Insulation Paper Inserter Slot Paper Inserting Machine

Product Details:

Contact Now

Industrial WIND-SZ-2 Armature Insulation Paper Inserter Slot Paper Inserting Machine

Description

Model NO.:	WIND-SZ-2	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

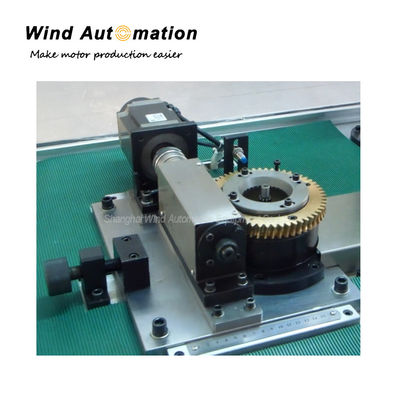

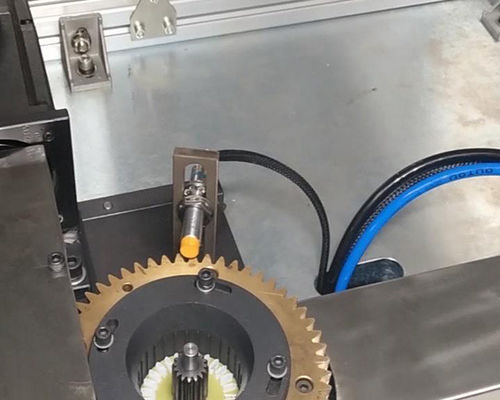

Armature Slot Insulation Paper Folder and Inserter

This slot paper inserter is capbale of producting both O-shape or S-shape insualtion paper. It is of high productivity, about 1s/slot. Parameter of different models can be programmed on touch screen.

(1) Features
Manual loading and unloading
High quality level of the paper inserting process
Capable of producing both O-shape or S-shape slot insulation
High productivity, 1s/slot
Edge folding length and insulation paper length adjustable
After paper inserted, no deformation of armature or lamination.
Easy for operation, No skilled operator required
Quick and easy readjustment for other types of armatures
Parameter of different models can be edited, modified and displayed.

(2) Specifications

Stack length	Max 100mm
Paper thickness	0.18~0.2mm
Heating temperature	70~100ºC
Air source	Min 0.5 MPa
Input Power Source	220V AC

(3)Application

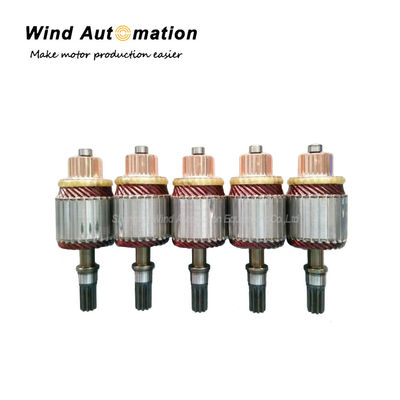

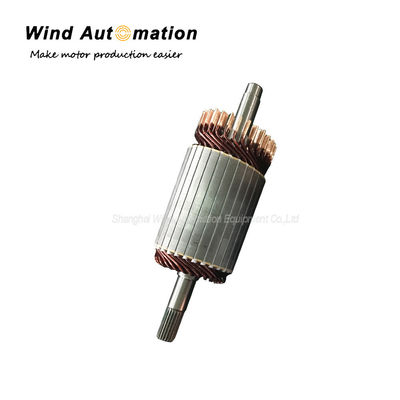

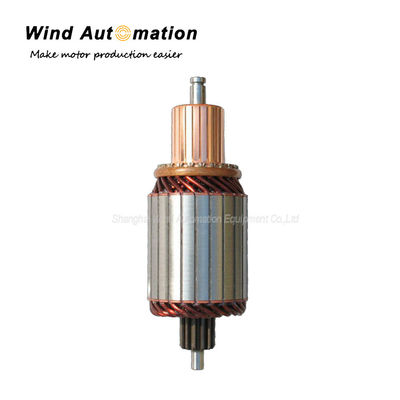

This insulation paper inserting machine is suitable for starter armature, automotive and aircraft motor armature to do slot paper insertion.

Armature Insulation Paper Inserter Slot Paper Inserting Machine
