Middle Size Motor Stator Rotor Varnish Dipping Machine Wind-Zdg DIP Varnishing Series

Large Image : Middle Size Motor Stator Rotor Varnish Dipping Machine Wind-Zdg DIP Varnishing Series

Product Details:

Contact Now

Middle Size Motor Stator Rotor Varnish Dipping Machine Wind-Zdg DIP Varnishing Series

Description

Model NO.:	WIND-ZDG	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

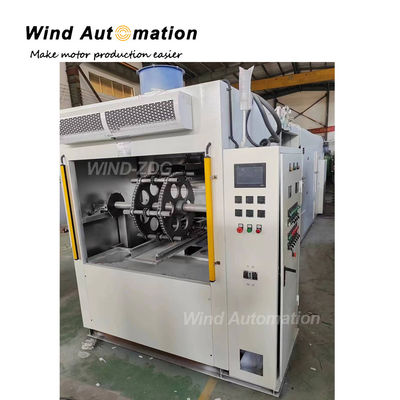

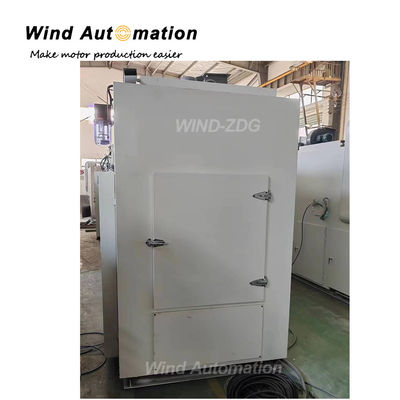

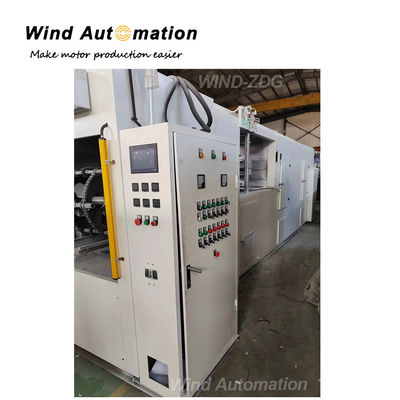

Motor Stator Rotor Varnish Dipping Machine WIND-ZDG Dip Varnishing Series

This type rotor varnish trickling machine is mainly used for motor rotor coil insulation automatic processing. Except for manually loading and unloading, the entire process is fully automated so as to guarantee product consistency and the quality for mass production.

(1) Specification

Working position	124×2
Position pitch	76 mm
Heating time	≤45min
Tunnel working temperature	0~160ºC
Pitch time	0~10 adjustable
Power	28 KW
Dimension	4900×1600×2100 mm
Weight	3.5 T

(2) Application

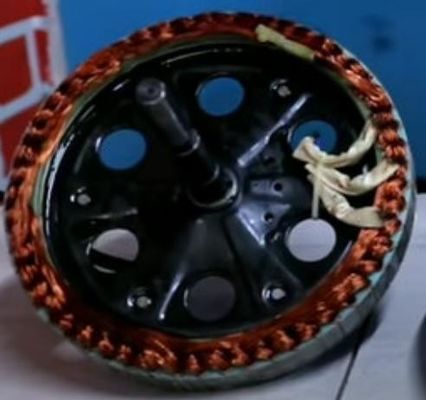

This machine has a wide range of application, suitable for various kinds of rotors, such as starter motor, hybrid motors, home appliance motors, pump motors, vacuum cleaner motors, power tool motors, series motors, vacuum cleaner motor.

(3) Features
High quality level of the varnishing process
Environment friendly
Heating time, pitch time and temperature can be set
Can be customized accordingly
Mass production
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
