Middle Size WIND-AWF-R Wire Forming Machine for Hairpin Winding of Starter Armatures

Large Image : Middle Size WIND-AWF-R Wire Forming Machine for Hairpin Winding of Starter Armatures

Product Details:

Contact Now

Middle Size WIND-AWF-R Wire Forming Machine for Hairpin Winding of Starter Armatures

Description

Model NO.:	WIND-AWF-R	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	50 Sets/Year

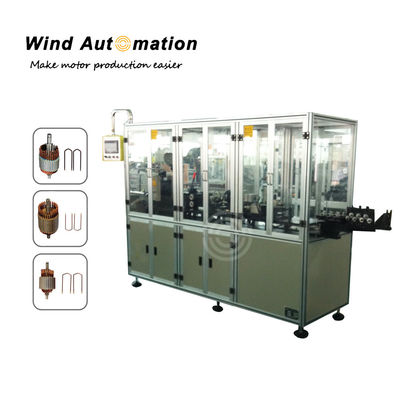

Wire Forming Machine Hairpin Winding Machine For Starter Armature

This hairpin winding machine is designed for manufacturing hairpins for starter armatures, hybrid automobile car armature. It can automatically turn single round bare wire into haripin coil. It integrates several machine stations in one automatic machine as follows: dereeler, straightening station, feeder, end forming station, S-forming station, U-bending station, cut-off station, twisting station.

(1)Specifications

Power Supply	AC 380V ±10% 50Hz
Air Pressure Supply	0.5~0.7Mpa
Machine Power	about 2 kW
Productivity	20~30pc/min
Feeding length	150~400mm
Dimension	2500x810x1600mm

(2) Application

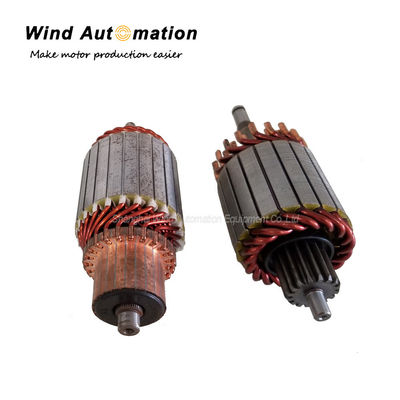

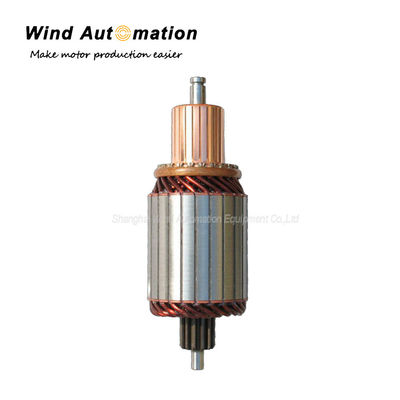

Suitable for starter motor, aerospace motor armature to do haripin coil forming.

(3) Features
Wide application---meets all requirements of the Automotive Industry
Able to produce hairpins for armature with skewed slots
Mitsubishi PLC control, colorful touching screen
High repeatability of the hairpin's shape and dimensions
High efficiency, automation and productivity
Capable of producing hairpins with customized twisting angle

Wire Forming Machine Hairpin Winding Machine for Starter Armature
