WIND-AWF-R Middle Size Automatic Hair Pin Forming Machine for Aerospace Manufacturing

Large Image : WIND-AWF-R Middle Size Automatic Hair Pin Forming Machine for Aerospace Manufacturing

Product Details:

Contact Now

WIND-AWF-R Middle Size Automatic Hair Pin Forming Machine for Aerospace Manufacturing

Description

Model NO.:	WIND-AWF-R	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	50 Sets/Year

Automatic Hair Pin Forming Machine for Auto Industry Aerospace

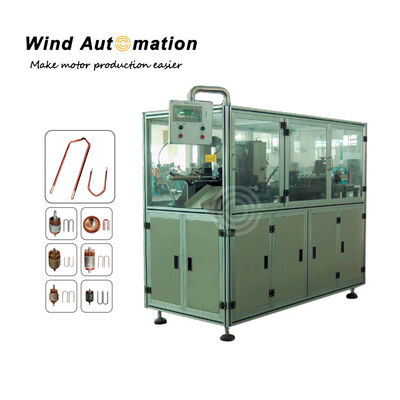

This hairpin forming machine can automatically turn single round bare wire into haripin coil. It integrates several machine stations in one automatic machine as follows: dereeler, straightening station, feeder, end forming station, S-forming station, U-bending station, cut-off station, twisting station.

(1) Application

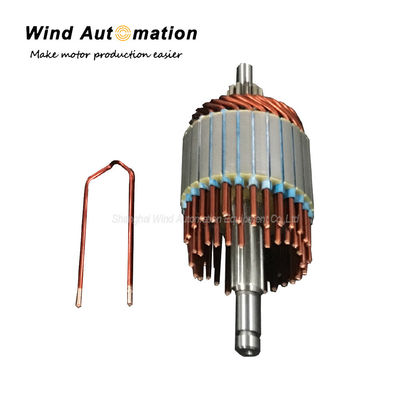

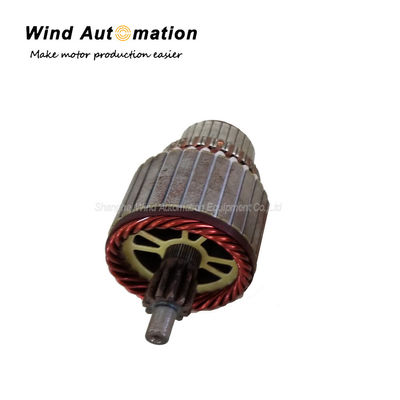

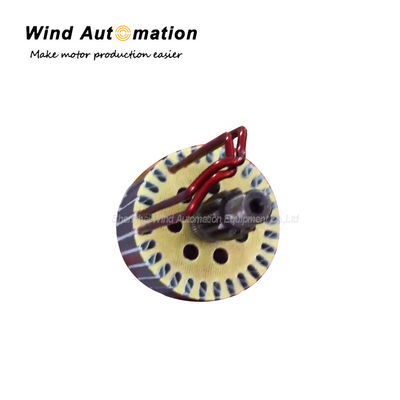

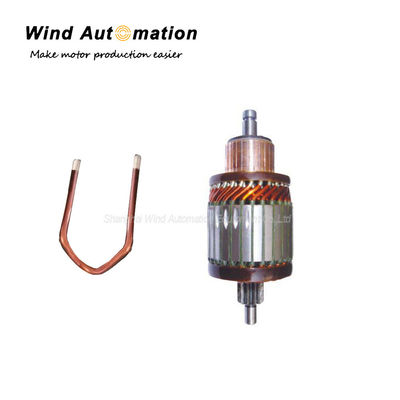

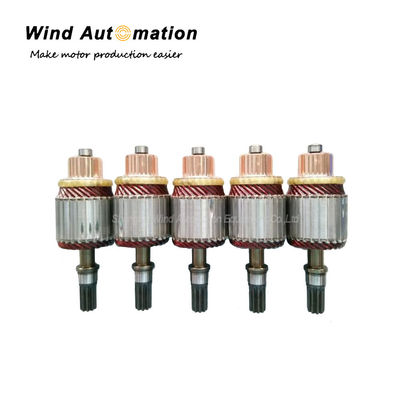

Suitable for starter motor, aerospace motor armature to do haripin coil forming.

(2)Specifications

Power Supply	AC 380V ±10% 50Hz
Air Pressure Supply	0.5~0.7Mpa
Machine Power	about 2 kW
Productivity	20-30 pc/min
Feeding length	150~400mm
Dimension	2500x810x1600mm

(3) Features
Wide application---meets all requirements of the Automotive Industry
Able to produce hairpins for armature with skewed slots
Mitsubishi PLC control, colorful touching screen
High repeatability of the hairpin's shape and dimensions
High efficiency, automation and productivity
Capable of producing hairpins with customized twisting angle

Automatic Hair Pin Forming Machine for Auto Industry Aerospace
