WIND-AWF-R Hairpin Winder for Aerospace Motor Armature Middle Size Leading Technology

Large Image : WIND-AWF-R Hairpin Winder for Aerospace Motor Armature Middle Size Leading Technology

Product Details:

Contact Now

WIND-AWF-R Hairpin Winder for Aerospace Motor Armature Middle Size Leading Technology

Description

Model NO.:	WIND-AWF-R	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	50 Sets/Year

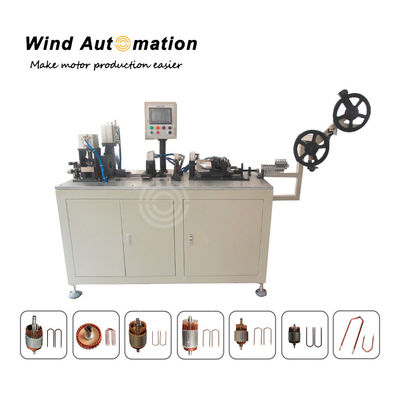

Hairpin Winder For Starter Motor, Aerospace Motor Armature

This hairpin winder is capable of forming hairpins for manufacturing starter armatures and aerospace motor armatures. It is suitable for armatures with round copper wire.

(1)Specifications

Power Supply	AC 380V
Air Pressure Supply	>0.5Mpa
Machine Power	500 kW
Productivity	2.3s/pc
Feeding length	0~250mm
Weight	700KG
Dimension	1700x600x1650mm

(2) Application

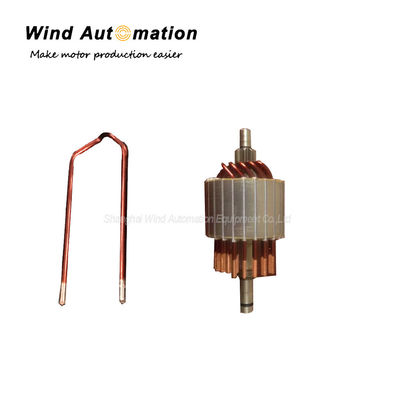

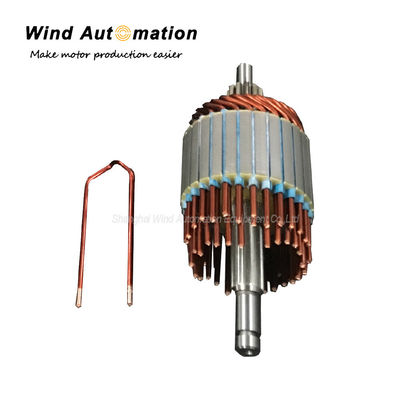

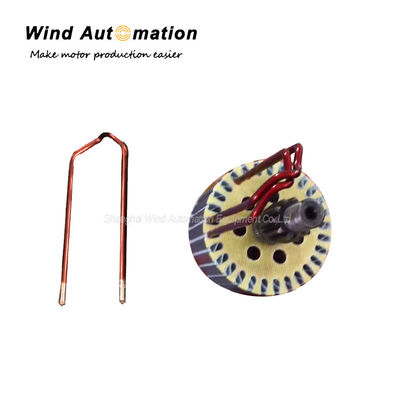

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(3) Features
Suitable for round wire
Mitsubishi PLC control, colorful touch screen
Automatically turn single bare copper wire into formed hairpin coil
High efficiency, automation and productivity, 2.3s/pc
Capable of producing hairpins with customized twisting angle
One operator is quite enough to operate this machine

(4)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components

Hairpin Winder for Starter Motor, Aerospace Motor Armature
