Product Details:
|
| Model NO.: | WIND-HT | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

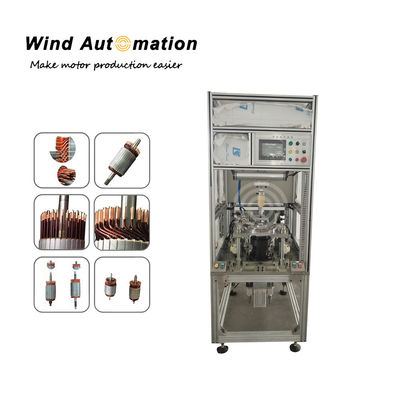

This wire twisting machine adopts a vertical type structure. It is controlled by servo motor. Coil twisting angle can be customized.
| Starters | Armature wire twisting |
| Starter-generators for Automotive | Car Vehicle Armature wire twisint |
| Starter of Aircraft Industries | Areospace starter armature wire twisting |
| BSG for Hybrid car | Electric car stator wire twisting (two layers, four layers) |
Features
(1) The frame body is made of angle steel, sprayed, color: computer ash.
(2) The sheet metal is sprayed in the same color as the frame, and the countertop is finely ground.
(3) Schneider switching power supply, low voltage electrical, and main switch control.
(4) Taiwan AIRTAC cylinder, solenoid valve and pneumatic unit (triple piece).
(5) Mitsubishi PLC program control, WEINVIEW man-machine interface
(6) Delta servo motor, Taiwan precision planetary reducer
(7) Linear guide: Taiwan HIWIN
(8) With single-action / automatic function, the fault automatically stops.
(9) With output setting, production count, delay, etc.
Specification
(1) Working voltage: 380VAC 50HZ
(2) Working pressure: MPa 5 . 0 ≥
(3) Equipment efficiency: about 15 seconds / piece
(4) Equipment weight: about 900KG
(5) Basic equipment size: 900*1100*1950mm
