Product Details:
|
| Model NO.: | WIND-HT-SN | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

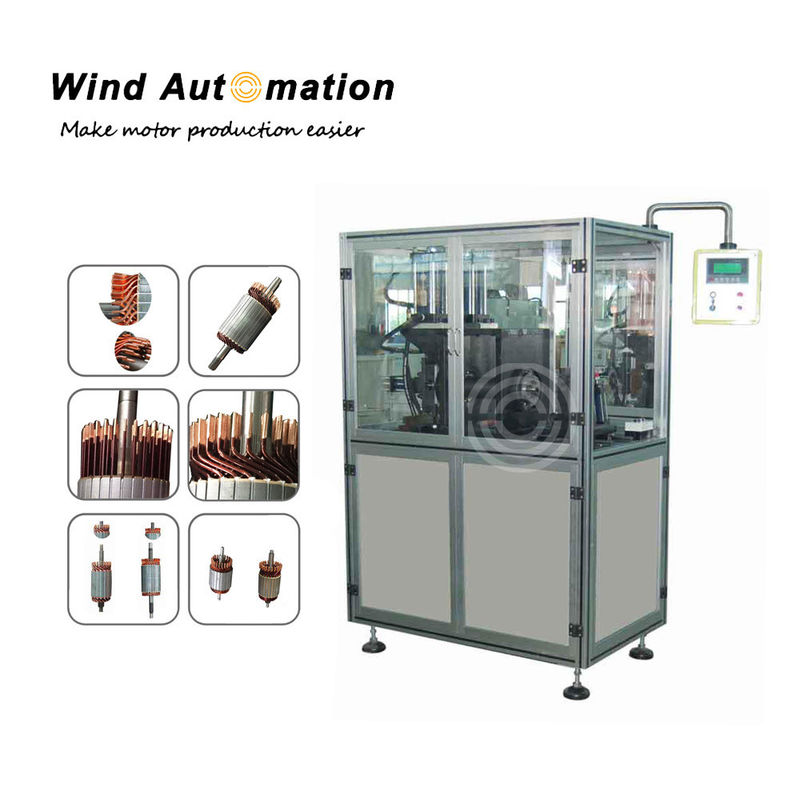

This wire machine is designed for twisting armature lead wires. The adoption of positioning claw effectively prevents short circuit caused by coil damage during twisting process. All the twisting process is driven by hydraulic racks.
| Power Supply | AC 380V ±10% 50Hz |
| Air Pressure Supply | 0~7Mpa |
| Machine Power | about 2.2 kW |
| Armature OD | 20~120mm |
| Armature length | 50~500mm |
| Slot No. | 4~40 |
| Dimension | 950x1600x1800mm |
(2) Application
Suitable for armatures requiring high quality and reliability of starters and starter-generators for aircraft Industries.
(3) Features
Wide application---meets all requirements of automotive starter motor
Precise twisting and alignment of the lead wires
High efficiency, automation and productivity
Controlled by Mitsubishi PLC and driven by hydraulic racks
Fully automatic twisting cycle after loading of the armature
Coil twisting angle can be customized
Fast and easy readjustment
