Product Details:
|
| Model NO.: | WIND-HT | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

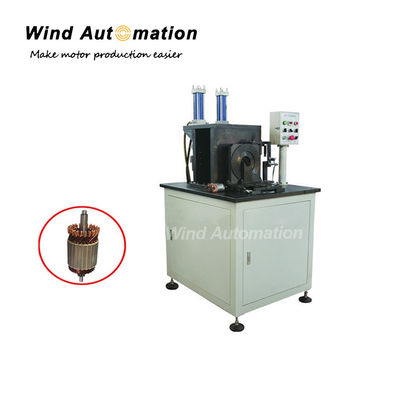

The hairpin twisting machine adopts hydraulic method to do coil twisting. The testing angle can be adjusted on the touch screen.
(1) Application
Suitable for armatures requiring high quality and reliability of starters and starter-generators for aircraft Industries.
| Power Supply | AC 380V |
| Air Pressure Supply | Max 0.7 Mpa |
| Machine Power | about 2.2 kW |
| Twisting Angle | Adjustable on touch screen |
| Cycle time | 6s/pc |
| Weight | 800KG |
| Dimension | 800x700x1500mm |
(3) Features
Precise twisting angle
Easy operation
Easy replacement of tooling fixtures
Fully automatic twisting cycle after loading of the armature
Coil twisting angle can be customized
Fast and easy readjustment
