Product Details:
|
| Model NO.: | WIND-CU | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

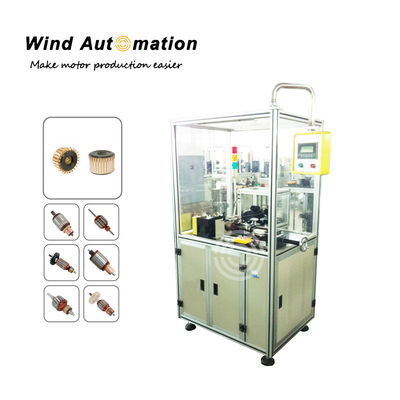

This commutator inslot grooving machine is used to do mica undercutting. Slot indexing is controlled by servo motor, while slot positioning is by fiber.
(1) Specification| Power Supply | AC220V±10% 50Hz |
| Air Pressure Supply | 0.5~0.7 Mpa |
| Rated Capacity | 3KW |
| Spindle Speed | 5000r/min |
| Commutator OD | 20~50mm |
| Armature OD | 0~100mm |
| Slot No. | 3~99 |
| Dimension | 1000x900x1800mm |
(2) Application
This machine is suitable for commutator of starter and DC motors to do mica undercutting.
(3) Features
No burrs after undercutting process
Use fiber to detect slot
Precise control throughout entire undercutting procedure
Can be customized accordingly
PLC control, colorful touching screen
One operator is quite enough to operate this machine
