Product Details:
|
| Model NO.: | WIND-CU | Condition: | New |
|---|---|---|---|
| Customized Service: | Provided | Transport Package: | Wooden Case |
| Specification: | Middle Size | Trademark: | Wind Automation |
| Origin: | China | HS Code: | 8479811000 |
| Production Capacity: | 100 Sets/Year | Package Size: | 1500.00cm * 800.00cm * 1750.00cm |
| Package Gross Weight: | 950.000kg |

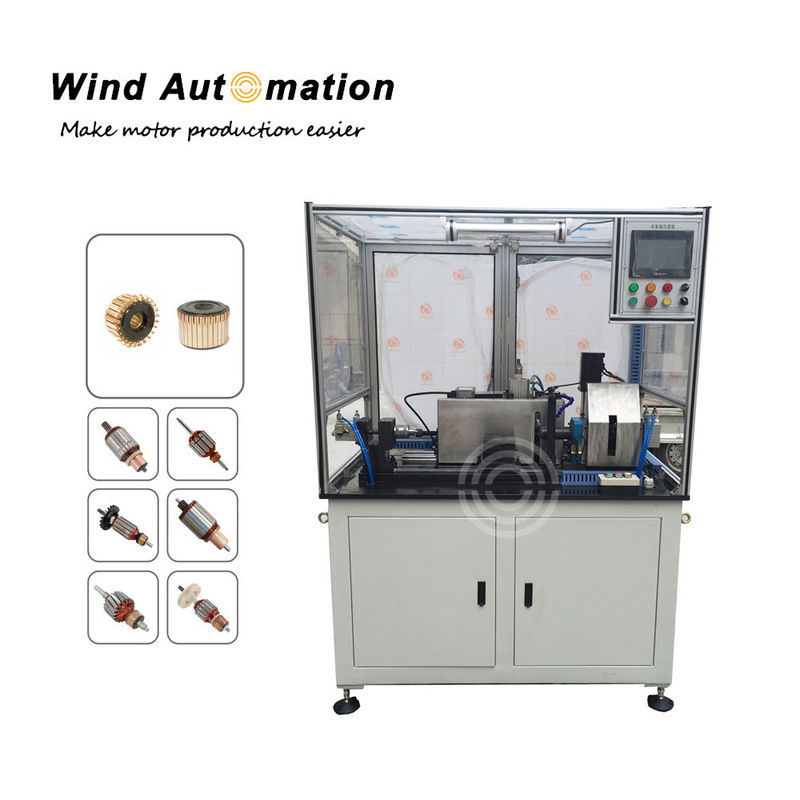

This commutator undercutting machine is designed to undercut the DC motor armature mica. Laser sensor ensures high slot positioning accuracy, while Mitubushi servo motor and planetary reduction guarantee the high slot indexing accuracy. This will be no burrs after undercutting process.
(1) Specifications
| Slots | adjustable |
| RPM | 2-99 |
| Coletor | 3000~5000 Adjustable |
| Rotor OD | Less than 100mm |
| Power supply | AC 380V |
| Total power | 3KW |
| Mica length | Less than 100mm |
| Number of recipes | 10 sets |
| Armature max length | Less than 200mm |
| Spare parts | Cutter |
| Main part brand | SMC |
| Productivity | 2~3s/ slot |
(2)Application
This machine is suitable for commutator of DC motors to do mica undercutting.
(3) Features
With vacuum cleaner
No burrs after undercutting process, brush deburring function to clean the copper surface after undercut
Automatic undercutt function for Mica with optical sensor/ Laser sensor to position slot
Use Mitubushi servo motor and planetary reduction to control indexing
Fast movement while undercutting
Can be customized accordingly
Precise control throughout entire undercutting procedure
(4)Competitive advantages
1.Laser sensor automatic positioning the first mica slot and each slots, precise than photoelectric detection.
2.Mitubushi servo motor and planetary reduction mechanism indexing ensure the accurate and reliable effect.
3.The system is extremely rigid, with less jumping and lifting cutter action during undercutting,so the trace path trajectory can be avoided during undercutting engraving, reducing the grooved burrs and improving the accuracy of the undercutting.
4.With strong industrial vacuum cleaner.
