Product Details:
|
| Model NO.: | WIND-CU | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

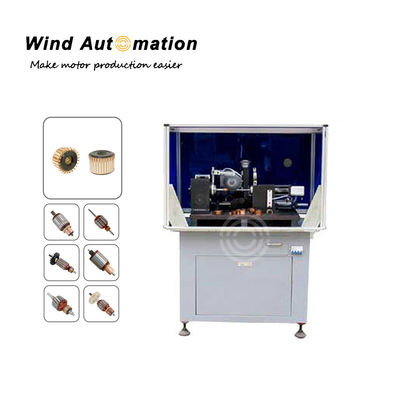

This commutator slot undercutting machine is an automated machine for commutator mica undercutting. It is suitable for any type of commutator, regardless of the size of the armature.
| Indexing speed | adjustable |
| Slot number | 2-99 |
| Productivity | 1s/slot |
| Air source | >0.5 MPa |
| Input Power Source | AC 380V |
| Weight | 700 KG |
| Dimension | 1200mm × 750mm × 1800mm |
(2)Application
This machine is suitable for commutator of starter and DC motors to do mica undercutting.
(3) Features
Suitable for any type of commutator
Fast and easy readjustment for various number of commutator 's bars
Laser sensor providing high slot positioning accuracy
Highly reliable indexing mechanism
Fast movement while undercutting
Can be customized accordingly
Precise control throughout entire undercutting procedure
High efficiency, automation and productivity
(4)Machine configuration
Mitsubishi PLC
Delta servo motor
Weinview touch screen
AIRTAC cylinder and magnetic switch
Schneider electrical switch
