Product Details:
|
| Model NO.: | WIND-CU | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

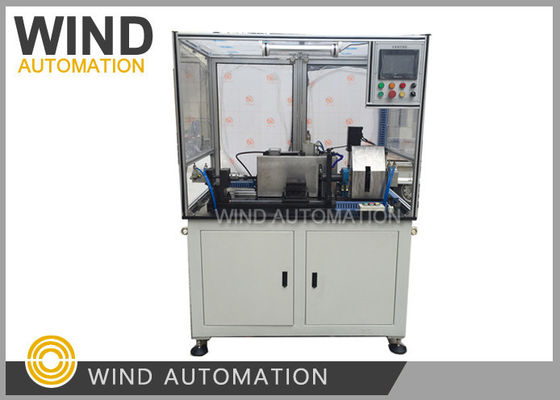

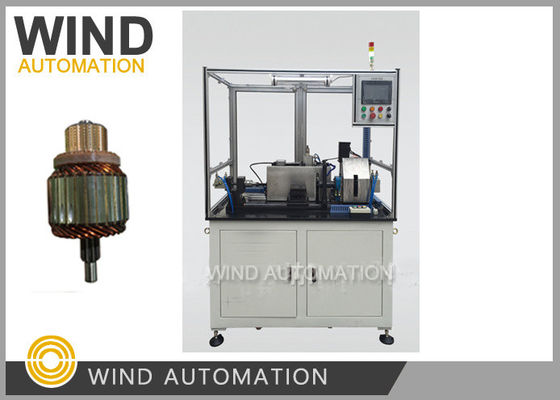

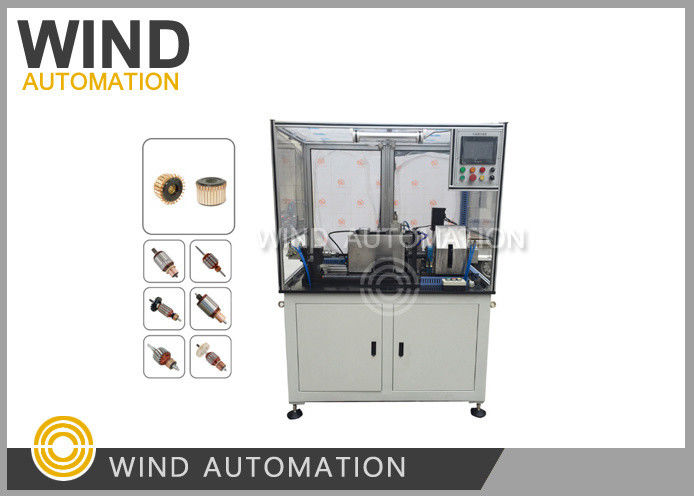

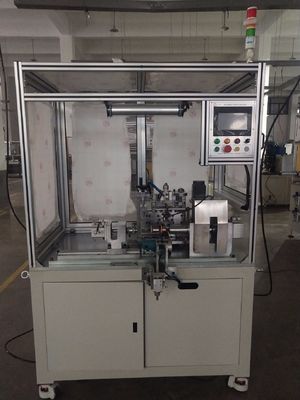

This commutator undercutting machine is suitable for any type of commutator to do mira undercutting. Precise control throughout entire undercutting procedure.
(1) Features
Suitable for any type of commutator
Fast and easy readjustment for various number of commutator 's bars
Laser sensor providing high slot positioning accuracy
Highly reliable indexing mechanism
Fast movement while undercutting
Can be customized accordingly
Precise control throughout entire undercutting procedure
High efficiency, automation and productivity
| Indexing speed | adjustable |
| Slot number | 2-99 |
| Productivity | 1s/slot |
| Air source | >0.5 MPa |
| Input Power Source | AC 380V |
| Weight | 700 KG |
| Dimension | 1200mm × 750mm × 1800mm |
(3)Application
This machine is suitable for commutator of starter and DC motors to do mica undercutting.
(4)Machine configuration
Mitsubishi PLC
Delta servo motor
Weinview touch screen
AIRTAC cylinder and magnetic switch
Schneider electrical switch

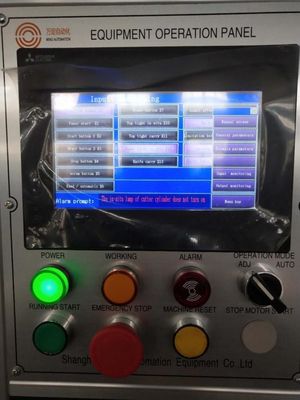

There is no password for the PLC and HMI,
If you have any question about HMI, would you please send the screen photo
