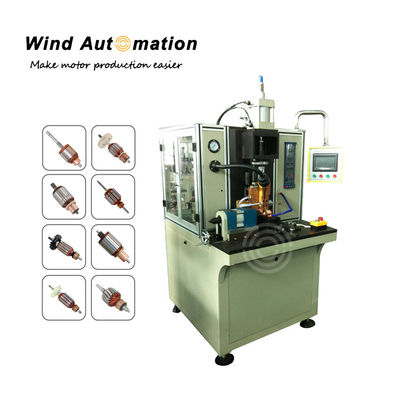

Customizable WIND-75KW-CS Commutator Fusing Machine for Starter Armature 100 Sets/Year

Large Image : Customizable WIND-75KW-CS Commutator Fusing Machine for Starter Armature 100 Sets/Year

Product Details:

Contact Now

Customizable WIND-75KW-CS Commutator Fusing Machine for Starter Armature 100 Sets/Year

Description

Model NO.:	WIND-75KW-CS	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

Commutator Fusing Machine For Starter Armature

This fusing machine is suitable for stater motor armature with both round wire and flat wire. The tooling method is water cooling to prevent over heating.

(1) Specifications
Power Supply : 3Φ-380V±10% 50Hz
Air source Pressure: 0.5~0.7Mpa
Adjustment Grades: 8 grades
Rated capacity:75kvA
Available section area of wire: 2.5~10mm2
Cooling Method: internal circular water cooling
Suitable for auto starting motor commutator with big wire diameter and armature coil etc. wire spot welding.
Can weld the armature with round wire or flat wire(rectangular wire)

(2) Application
This machine is suitable for starter motor armature with round wire or flat wire.

(3) Features
Suitable for armature with both flat or round wire
Fully automatic welding cycle after loading of armature
Water cooling system prevents overheating
Memory storage of welding and commutator's parameters
Can be customized accordingly
High quality level of the commutator welding process
