Product Details:
|
| Model NO.: | WIND-DNZ | Specification: | Middle Size |
|---|---|---|---|
| Trademark: | Wind Automation | Origin: | China |
| HS Code: | 8479811000 | Production Capacity: | 100 Sets/Year |

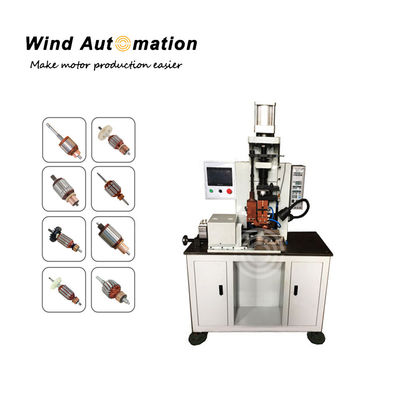

This welding machine has a strong applicability and wide application. Inverter control system ensures the high quality of each single weld. It can be customized accordingly.
(1) Features
Water cooling of the commutator bars prevents overheating
Suitable for any type of commutator
Automatic servo controlled indexing and initial positioning of the armature
Temperature control system monitors the temperature of the joint during welding
High quality level of the commutator fusing process
Displays diagrams of the fusing temperature, electrode force and indentation for each weld and for the whole armature.
Fully automatic fusing cycle after loading of the armature
Constant current and constant pressure control throughout entire welding procedure.
Quick and easy readjustment for other types of armatures
Can be customized accordingly
| Rotor OD | <90mm |
| Spindle OD | 6~12mm |
| Slot number | 1-99 |
| Productivity | 1s/slot |
| Air source | >0.5 MPa |
| Input Power Source | AC 380V |
| Weight | 1200 KG |
| Dimension | 1200mm × 1100mm × 1700mm |
(3)Application
This machine is suitable for starter rotors, automotive car motor.
(4)Machine configuration
Mitsubishi PLC and servo motor
DC welding controller and inverter (110KVA)
Industrial cooling machine
Weinview touch screen
AIRTAC cylinder, SMC magnetic switch
Valve and pneumatic unit (triple piece)
Schneider low voltage electrical switch, master switch
