100 Sets/Year Bsg Motor Rotor Balancing Machine Armature Weight Removing Machine

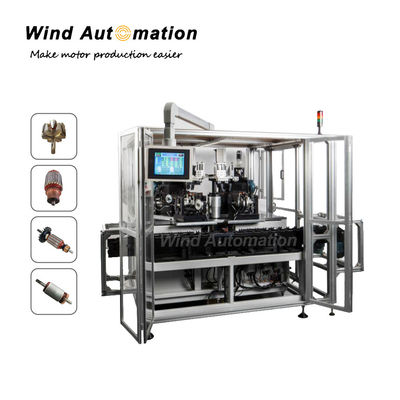

Large Image : 100 Sets/Year Bsg Motor Rotor Balancing Machine Armature Weight Removing Machine

Product Details:

Contact Now

100 Sets/Year Bsg Motor Rotor Balancing Machine Armature Weight Removing Machine

Description

Model NO.:	WIND-BC5	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

BSG Motor Rotor Balancing Machine Armature Weight Removing Machine

The 5 stations fully automatic armature balancing machine is suitable for majority of armatures, like DC motor, universal motor used for home appliance, car and power tool motor armature.

(1)Specification

Working station	5
Armature OD	40-60mm
Stack height	15-60mm
Armature weight	<1.6 KG
Cutting method	R-shape cutter
Balancing speed	1000-2200rpm
Cycle time	10-12s
Initial unbalance	According to armature radius and cutting depth
Air supply	0.4~0.6Mpa
Power supply	AC380V
Dimension	2000 x1700x1800 mm

(2)Feature
5 working stations, 1 for loading and unloading, 2 for balancing, 2 for testing
High efficiency, automation and productivity
High quality level of the balancing process
Gravity feeding conveyor
Conveyor for outgoing rotors
Twice testing guarantees balancing accuracy
Servo drive systems providing high positioning accuracy while cutting
Suitable for the majority of armatures
Compact design which allows easy and safe handling

(3)Operation process
Power on machine.
Put the armature on the conveyor, make sure the commutator side should touch the conveyor side.
Press Test&Process on touch screen.
Press RUN on the touch screen or START button.
Machine will automatically do balancing.
Unload armature.

Bsg Motor Rotor Balancing Machine Armature Weight Removing Machine
