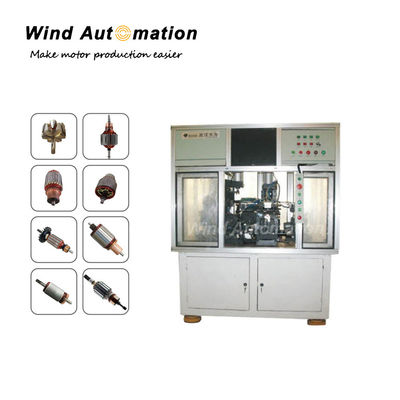

100 Sets/Year WIND-ABM-2 Micro Motor Rotor Balancing Machine for Small Armatures

Large Image : 100 Sets/Year WIND-ABM-2 Micro Motor Rotor Balancing Machine for Small Armatures

Product Details:

Contact Now

100 Sets/Year WIND-ABM-2 Micro Motor Rotor Balancing Machine for Small Armatures

Description

Model NO.:	WIND-ABM-2	Trademark:	Wind Automation
Origin:	China	HS Code:	8479811000
Production Capacity:	100 Sets/Year

2 Working Station Micro Motor Rotor Small Armature Balancing Machine

This balancing machine adopts armature weight balancing removing method. It can do automatic measure, and weight removing. Loading and unloading should be done by manual.

The initial unbalance is in accordance with difference of rotor radius and cutting depth, for example, the max single cut on diameter of 32mm≤500mg, the max single cut on diameter of 40mm ≤800mg.

(1)Specification

Working station	2
Balancing speed	1600-2100rpm
Milling method	R-shape or V-shape
Power	AC380V
Air supply	0.4~0.6Mpa
Rotor weight	Less than 1.6KG
Stack height	20-70mm
Rotor diameter	20-45mm/40-70mm
Max removing volume	>=90%
One time cutting qualified rate	>=90%
Imbalance repeat measuring precision	≤0.5g.mm (±5mg)
Fixture changing time	Same armature O.D ≤5 min Different armature O.D ≤ 15 min
Dimension	1300x 1000 x 1300 mm

(2) Application
It is suitable for home appliance, car and power tool motor armature.

2 Working Station Micro Motor Rotor Small Armature Balancing Machine
