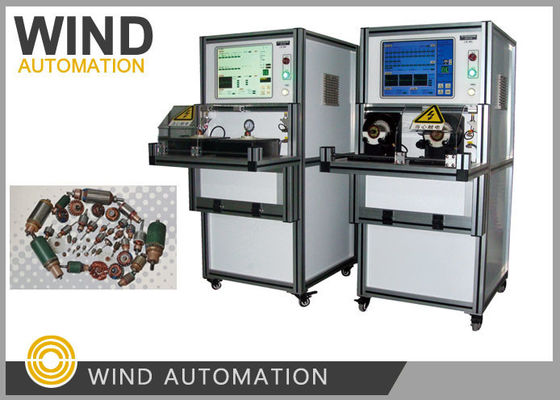

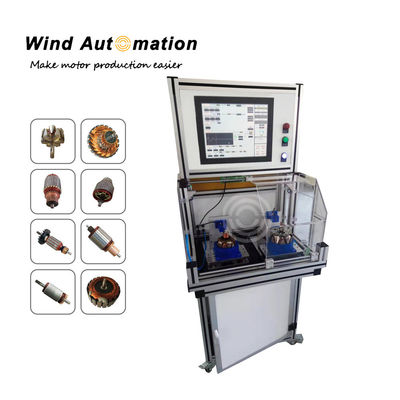

Middle Size Starter Motor Armatue Testing Machine for Customer Requirements 100 Sets/Year

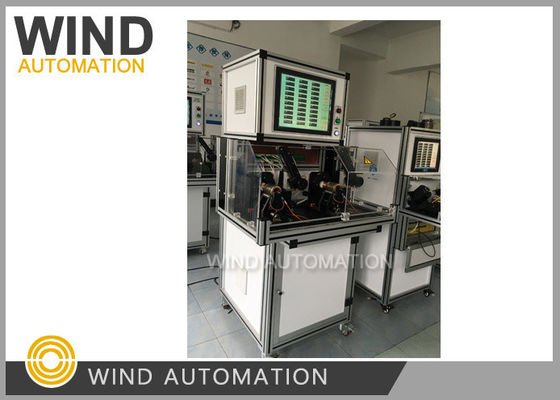

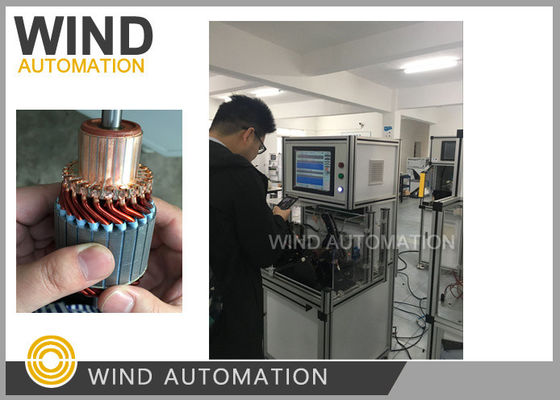

This starter armature tester WIND-ATS-02 had worked for many local big famous starter manufactures  including Huachuan,Shendian.

One of them purchased 5pcs at the first time and then 7pcs, we can say 80% of the local starter manufacturers are using our testing device,

Our engineering team bulid this tester according to customers requirement and had much experience,

upgrade the tester gradually in past years, combine and considering starter manufacturers' feedback and new requirements,

In short word, the test items are based on starter armature manufaturers' requirements, you can depend on it for judging your armature quality,

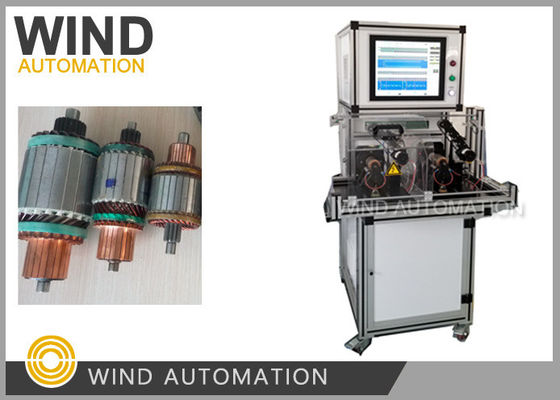

The Armature tester WIND-ATS-02 can test armature below 36slots, so it is OK with slots from 12 up to 33 slots.

Yes, all the result is showed on screen slot by slot,

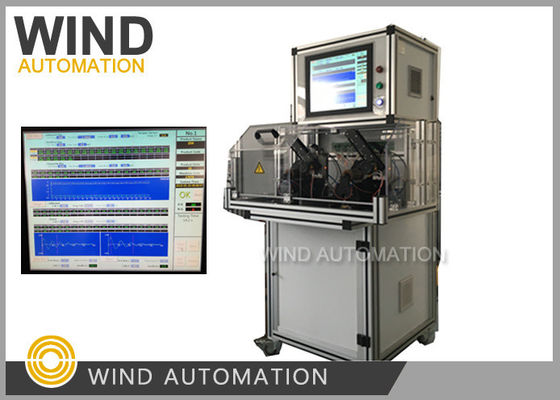

we took a video focus on the screen with a 23slots armature, please refer to attached video,

You can see on the screen 6 test items being tested one by one with 23 data come out gradually,

(3) Application
Suitable for auto starter armatures to do performance testing.

(4) Features
1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
  Four-terminal measurement to ensure accuracy
2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
  Six-terminal measurement to ensure accuracy
3. Cross resistance 0.01mΩ-10mΩ
  Four-terminal measurement to ensure accuracy
4.Surge 100-1000V (100V/time)
   Pulse crest:0.5u sec, Frequency 1~40MHz
   Standard waveform is Write, OK waveform is Green, NG waveform is Red
5.Isolation resistance  DC 500V
   Testing time:1~10s (0.1s/time)
   Range:1~500MΩ
   Accuracy: ≤±5%
6.Hipot AC 100-1000V
   Testing time:1~10s (0.1s/time)

(5)Machine configuration
15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac
