Automatic Armature Tester Welding Isolation Resistance Surge Dielectrictesting Machine

Large Image : Automatic Armature Tester Welding Isolation Resistance Surge Dielectrictesting Machine

Product Details:

Contact Now

Automatic Armature Tester Welding Isolation Resistance Surge Dielectrictesting Machine

Description

Model NO.:	WIND-ATS-02	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

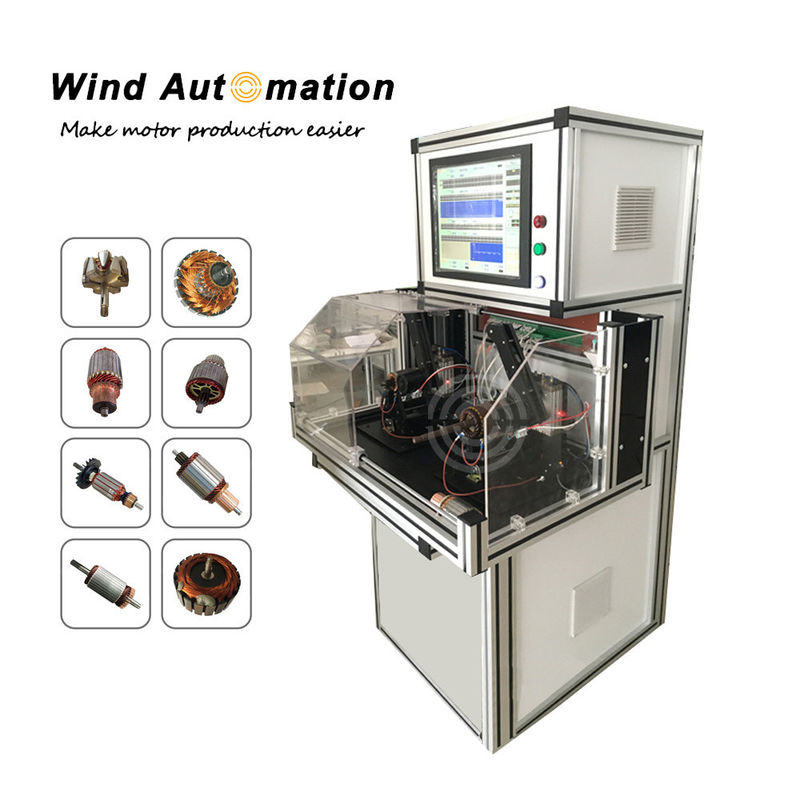

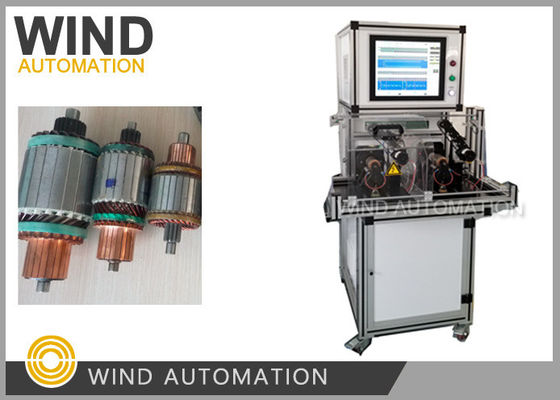

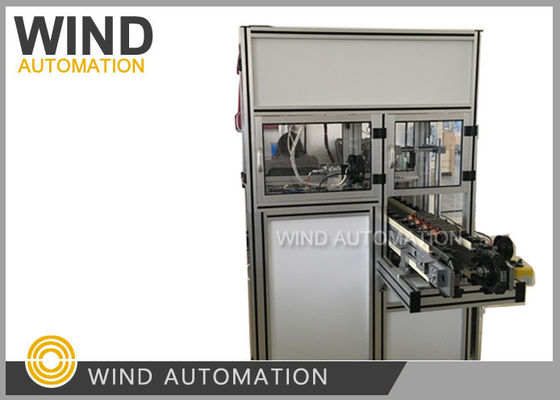

Automatic Armatue Testing Machine

This armature testing machine is a fully automatic machine for armature performance testing. All the test quality report can be generated and printed.Machine has various testing options available to do testing.

(1)Machine specifications

Power Supply Voltage	AC 220V, 50Hz
Air source Pressure	0.4~0.6MPa
Test cycle	8~9s (according to 33bars)
Temperature	0~45ºC
Dimension	950x1250x580mm

(2)Testing specifications

Test Items	Test Description	Test result
Bar to Bar resistance	0.01mΩ~10mΩ	≤±0.5% Full scale
Welding resistance	0.01mΩ-10mΩ	±10μΩ
180ºC cross resistance	0.01mΩ-10mΩ	≤±1.5% Full scale
Surge	100-1000Vpp (Max 36sets waveform)	±5%
Isolation resistance	DC 500V	0.1-500MΩ ≤±5% Full scale
Hipot	AC 100-1000V	0-20mA ≤±.5% Full scale

(3) Application
Suitable for auto starter armatures to do performance testing.

(4) Features
1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
  Four-terminal measurement to ensure accuracy
2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
  Six-terminal measurement to ensure accuracy
3. Cross resistance 0.01mΩ-10mΩ
  Four-terminal measurement to ensure accuracy
4.Surge 100-1000V (100V/time)
   Pulse crest:0.5u sec, Frequency 1~40MHz
   Standard waveform is Write, OK waveform is Green, NG waveform is Red
5.Isolation resistance  DC 500V
   Testing time:1~10s (0.1s/time)
   Range:1~500MΩ
   Accuracy: ≤±5%
6.Hipot AC 100-1000V
   Testing time:1~10s (0.1s/time)

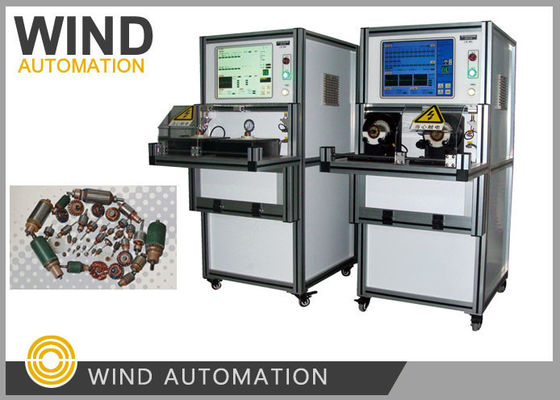

(5)Machine configuration

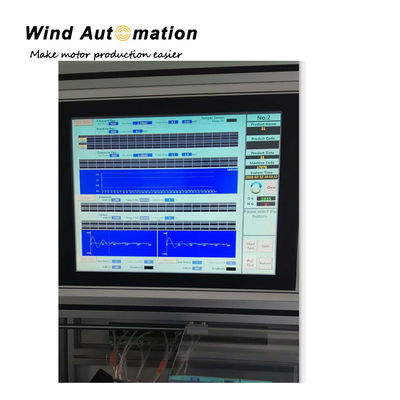

15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac

(6)Machine advantages
a. All the test items are judged automatically by the equipment, which eliminates the disadvantages of the traditional test methods, which are determined manually by the product.
b. Quickly and accurately determine defects in the production process of winding, assembly, and welding of the motor, and indicate the location of the fault, which is convenient for the operator to repair the defective product.
c.The voltage of the device's high voltage test is automatically adjusted and generated,
  stable and convenient.
d. All standard parameters of the equipment are automatically read and set up with a single button,
  and human-machine interaction is more friendly.
e. According to the modular design of the test function single board type, the work is more stable and maintenance is more convenient.
f. The equipment reserves the control port and can realize the automatic production mode of single
machine or the whole production process. It can also expand the data docking communication
function with the server to meet the needs of modern factories.
