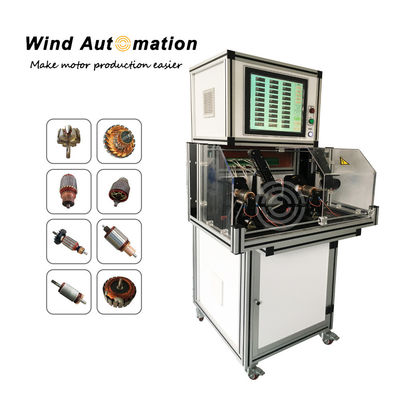

Middle Size WIND-ST-1 AC Motor Starter Motor Armature Testing Machine Bar to Bar Resistance

Large Image : Middle Size WIND-ST-1 AC Motor Starter Motor Armature Testing Machine Bar to Bar Resistance

Product Details:

Contact Now

Middle Size WIND-ST-1 AC Motor Starter Motor Armature Testing Machine Bar to Bar Resistance

Description

Model NO.:	WIND-ST-1	Specification:	Middle Size
Trademark:	Wind Automation	Origin:	China
HS Code:	8479811000	Production Capacity:	100 Sets/Year

AC Motor Starter Motor Armature Testing Machine Bar to Bar Resistance

This armature is used to do performace testing for commutator type armature with a bar number less than 48pcs.

(1) Features
1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
  Four-terminal measurement to ensure accuracy
2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
  Six-terminal measurement to ensure accuracy
3. Cross resistance 0.01mΩ-10mΩ
  Four-terminal measurement to ensure accuracy
4.Surge 100-1000V (100V/time)
   Pulse crest:0.5u sec, Frequency 1~40MHz
   Standard waveform is Write, OK waveform is Green, NG waveform is Red
5.Isolation resistance  DC 500V
   Testing time:1~10s (0.1s/time)
   Range:1~500MΩ
   Accuracy: ≤±5%
6.Hipot AC 100-1000V
   Testing time:1~10s (0.1s/time)

(2) Application
Suitable for various types of AC motor or stater armatures to do performance testing.

(3)Machine configuration
15'' Touch screen
Sampling Chip: BB/TI (USA import)
Relay:NAIS(Japan Panasonic)
High voltage relay:Toward
Pneumatic parts: Airtac
AC Motor Starter Motor Armature Testing Machine Bar to Bar Resistance
